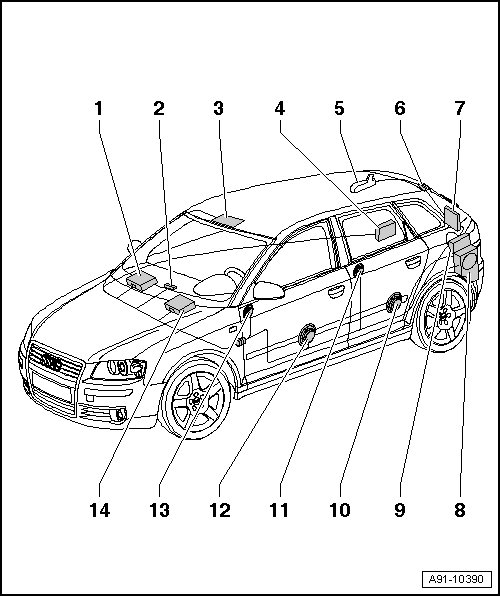

SDARS Radio System Component Locations
SDARS Radio System Component Locations
1 CD Changer (R41)
• Inside the glove compartment.
• Connectors, refer to => [ CD Changer Connector and Connector Assignments ] CD Changer Connector and Connector Assignments.
• Removing and installing, refer to => [ CD Changer ] CD Changer.
- iPod Baseplate (R192)
• Connectors, refer to => [ iPod Baseplate Connectors and Connector Assignments ] iPod Baseplate Connectors and Connector Assignments.
• Removing and installing, refer to => [ iPod Baseplate ] iPod Baseplate.
2 Center Mid/High Range Loudspeaker (R158)
• In front instrument panel, center.
• Removing and installing, refer to => [ Center Mid/High Range Speaker ] Center Mid/High Range Speaker.
3 Inside Microphone (R74)
• Only with BOSE
• in Front Interior Light (W1)
• Function test, refer to => [ Inside Microphone, Function Test ] Testing and Inspection.
• Removing and installing, refer to => [ Inside Microphone ] Inside Microphone.
4 Digital Sound System Control Module (R12)
• Only with BOSE.
• Behind luggage compartment right side trim.
• Connectors, refer to => [ Digital Sound System Control Module Connector and Connector Assignments ] Digital Sound System Control Module Connector and Connector Assignments.
5 Antenna (R11)
• Ter/Sat/GPS/GSM
• Roof antenna.
• Removing and installing, refer to => [ Antenna ] Antenna.
6 Antenna Amplifier (R24)
• On upper left of rear lid.
• Connectors, refer to => [ Antenna Amplifier Connectors and Connector Assignments ] Antenna Amplifier Connectors and Connector Assignments.
• Radio generation II+ connections => [ only with Radio Generation II+ ] Antenna Amplifier Connectors and Connector Assignments
• Removing and installing, refer to => [ Antenna Amplifier, Right Antenna Module and Antenna Amplifier 2 ] Antenna Amplifier, Right Antenna Module and Antenna Amplifier 2.
7 Left Antenna Module (R108)
• At the bottom of the rear lid on the left side.
• Connectors, refer to => [ Left Antenna Module Connectors ] Left Antenna Module Connectors.
• Radio generation II+ connections, refer to => [ Left Antenna Module Connectors, Only Radio Generation II+ ] Left Antenna Module Connectors, Only Radio Generation II+.
• Removing and installing, refer to => [ Left Antenna Module ] Left Antenna Module.
8 Amplifier with Bass Speaker in Left Luggage Compartment (R44)/Bass Speaker (R100)
• Behind luggage compartment left side trim.
• Connectors amplifier with bass speaker in left luggage compartment, refer to => [ Amplifier with Bass Speaker in Left Luggage Compartment Connector and Connector Assignments ] Amplifier With Bass Speaker In Left Luggage Compartment Connector and Connector Assignments.
• Removing and installing amplifier with bass speaker in left luggage compartment, refer to => [ Amplifier with Bass Speaker in Left Luggage Compartment ] Amplifier With Bass Speaker In Left Luggage Compartment.
• Removing and installing bass speaker, refer to => [ Bass Speaker ] Bass Speaker.
9 Satellite Radio (R146)
• Behind luggage compartment left side trim.
• Connectors, refer to => [ Satellite Radio Connectors and Connector Assignments ] Satellite Radio Connectors and Connector Assignments.
• Removing and installing, refer to => [ Satellite Radio ] Satellite Radio.
• Activating, refer to => [ Satellite Radio, Activating ] Testing and Inspection.
10 Left Rear Midrange Speaker (R105)/Right Rear Midrange Speaker (R106)
• In bottom of rear doors.
• Removing and installing, refer to => [ Rear Midrange Speaker ] Rear Midrange Speaker.
11 Left Rear Treble Speaker (R14)/Right Rear Treble Speaker (R16)
• In top of rear doors.
• Removing and installing, refer to => [ Rear Treble Speaker ] Rear Treble Speaker.
12 Left Front Mid/Low Range Loudspeaker (R101)/Right Front Mid/Low Range Loudspeaker (R102)
• In bottom of front doors.
• Removing and installing, refer to => [ Front Mid/Low Range Loudspeaker ] Front Mid/Low Range Loudspeaker.
13 Left Front Treble Speaker (R20)/Right Front Treble Speaker (R22)
• In the center of the A-pillar.
• Removing and installing, refer to => [ Front Treble Speaker ] Front Treble Speaker.
14 Radio (R)
• In the top of the center console.
• Concert connections, refer to => [ SDARS Radio System Connectors and Connector Assignments, Concert ] SDARS Radio System Connectors and Connector Assignments, Concert.
• Concert, removing and installing, refer to => [ Radio, Chorus/Concert ] Radio, Chorus/Concert.
• Symphony connections, refer to => [ SDARS Radio System Connectors and Connector Assignments, Symphony ] SDARS Radio System Connectors and Connector Assignments, Symphony.
• Radio generation II+ connections, refer to => [ SDARS Radio System Connectors and Connector Assignments, Concert/Symphony (Radio Generation II+) from KW 22/06 ] SDARS Radio System Connectors and Connector Assignments, Concert/Symphony (Radio Generation II+) From KW 22/06.
• Symphony, removing and installing, refer to => [ Radio, Symphony ] Radio, Symphony.
• Symphony II+ transport protection, activating/deactivating, refer to => [ Radio, Symphony II+ in Transport Mode, Activating/Deactivating ] Radio, Symphony II+ In Transport Mode, Activating/Deactivating.
