SDARS Radio System Connectors and Connector Assignments, Symphony
SDARS Radio System Connectors and Connector Assignments, Symphony

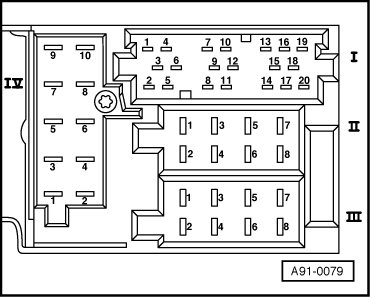

1 HF Connection (Black) from the Left Antenna Module (R108)
2 ZF Connection (Yellow) to the Left Antenna Module (R108)
3 10-Pin Connector IV, (T10h) Red
4 8-Pin Connector III, (T8) Black
5 Device Fuse
6 8-Pin Connector II, (T8k) Brown
7 20-Pin Connector I, (T20i) Black
• Unlisted connector terminals are not used.
3 - 10-Pin Connector IV, (T10h) Red
1 LF mute from preliminary setup for cell phone preparation
3 LF (+) from telephone transceiver (R36)/preliminary setup for cell phone package
4 LF (-) from telephone transceiver/preliminary setup for cell phone package
5 LF (+) Navigation (not used)
6 LF (-) Navigation (not used)
7 Navigation control wire (not used)
4 - 8-Pin Connector III, 8-Pin, (T8) Black
1 BOSE coding to ground PIN 8 (only with BOSE)
2 Anti-theft warning system (not used)
5 Positive switched to the antenna amplifier (R24) (not used)
7 Terminal 30
8 Terminal 31
6 - 8-Pin Connector II, (T8k) Brown
3 Right front speaker (+) (not with BOSE)
4 Right front speaker (-) (not with BOSE)
5 Left front speaker (+) (not with BOSE)
6 Left front speaker (-) (not with BOSE)
7 - 20-Pin Connector, (T20i) Black
1 Left rear signal to Amplifier/Woofer (in left rear luggage compartment) (R44)/Amplifier (R12)
2 Right rear signal to Amplifier/Woofer (in left rear luggage compartment)/Amplifier
3 Signal ground to Amplifier/Woofer (in left rear luggage compartment)/Amplifier
4 Left front signal to Amplifier (only with BOSE)
5 Right front signal to Amplifier (only with BOSE)
6 Positive switched to Amplifier/Woofer (in left rear luggage compartment)/Amplifier
7 CAN-Bus High (Infotainment)
10 CD ground to CD Changer (R41)
12 CAN-Bus Low (Infotainment)
13 CD data in from CD Changer
14 CD data out to CD Changer
15 CD CLK in from CD Changer
16 Permanent positive to CD Changer
17 Positive switched to CD Changer
18 Signal ground to CD Changer/Satellite Radio (R146)
19 Left signal from CD Changer/Satellite Radio
20 Right signal from CD Changer/Satellite Radio
