Inside Microphone

Inside Microphone

Special tools, testers and auxiliary items required

• Special hook (3370)

- Switch off all electrical consumers.

- Remove the key.

Removing

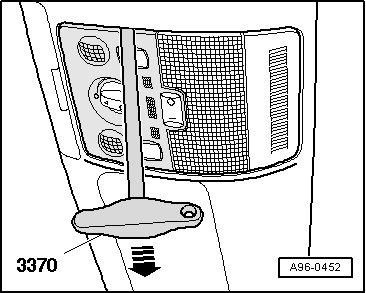

- Carefully remove cover on front interior light (W1) with (3370).

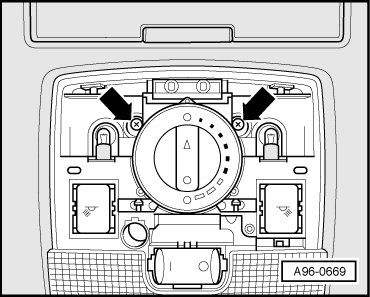

- Remove screws - arrows - (3 Nm).





- Tip front interior light downward and out.

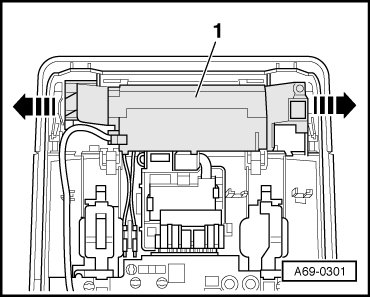

- If present, release retaining clips - arrows - and remove Radar Interior Monitoring Control Module 1 (G303) - 1 - from front interior light (W1).

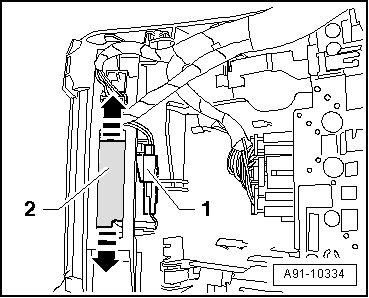

- Disconnect connector - 1 - on inside microphone (R74) - 2 -.





- Release retaining hooks - arrows - and remove inside microphone - 2 -.

Installing

- Install in reverse order of removal.
