End Plate

End Plate

Removing

- Remove the back section of the front wheel housing liner. Refer to => [ Front Wheel Housing Liner ] Front Wheel Housing Liner.

- Remove left cover. Refer to => [ Left Cover ] Left Cover.

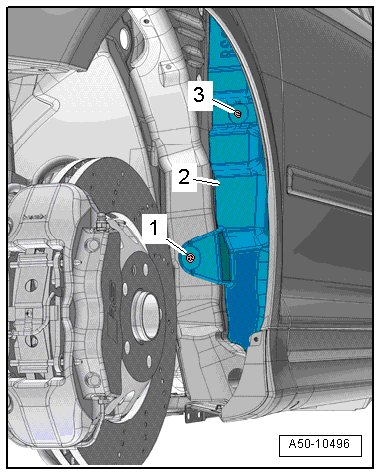

- Remove the bolts - 1 and 3 -.






- Remove end plate - 2 - by pulling it forward.

Installing

• For the correct tightening specifications, refer to => [ Fender Overview ] Fender Overview.

Installation is reverse of removal, but note the following:

- Install left cover. Refer to => [ Left Cover ] Left Cover.

- Install the front section of the front wheel housing liner. Refer to => [ Front Wheel Housing Liner ] Front Wheel Housing Liner.
