Mount with Left and Right Rear Heated Seat Control Module

Mount with Left and Right Rear Heated Seat Control Module

Removing





- Open ashtray cover.

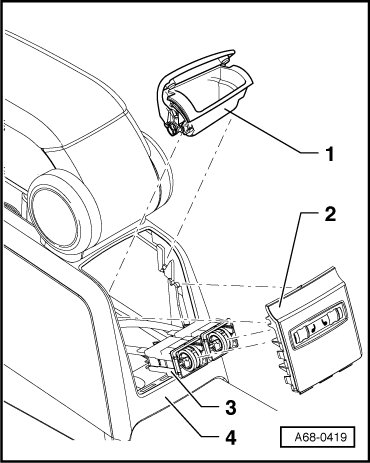

- Remove rear ashtray - 1 - from center console - 4 -.

- Remove mount with left/right rear heated seat control module - 2 - from center console - 4 -.

- Unclip mount - 2 - from left/right rear heated seat control modules - 3 -.

Installation

Installation is reverse of removal, but note the following:

• The switch with left/right rear heated seat control - 3 - must audibly engage in mount - 2 -.

• Ashtray cover must be open to installed rear ashtray.
