Rear Storage Compartment

Rear Storage Compartment

Removing





- Open ashtray cover.

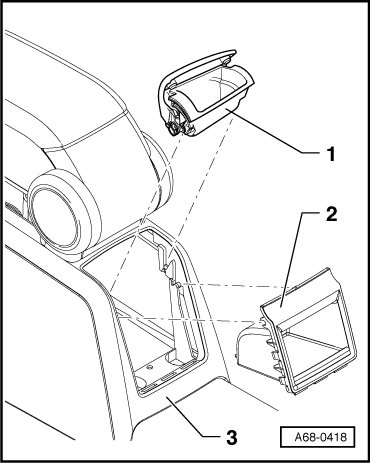

- Remove rear ashtray - 1 - from center console - 3 -.

- Remove rear storage compartment - 2 - from center console - 3 -.

Installation

Installation is reverse of removal, but note the following:

- First install rear storage compartment - 2 -.

• Ashtray cover must be open to installed rear ashtray.
