Lower B-pillar Trim

Lower B-pillar Trim

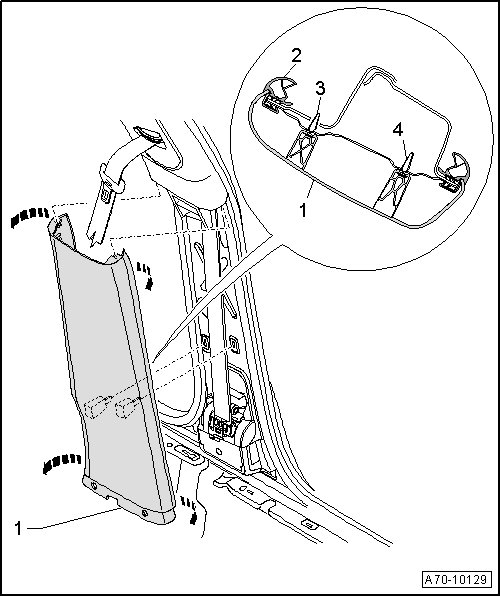

1 Lower B-pillar Trim

Removing

- Remove sill panel trim. Refer to => [ Sill Panel Strip ] Sill Panel Strip.

- Spread lower B-pillar trim - 1 - in upper and lower area - arrows - at outer edge.

- Remove lower B-pillar trim from body; the spring clips - 3 - and - 4 - will disengage from the door jamb.

Installation

Installation is reverse of removal, but note the following:

- Install sill panel trim. Refer to => [ Sill Panel Strip ] Sill Panel Strip.

- Pull door seal lip - 2 - over trim edge on all door cut-outs.

2 Door Seal

3 Spring Clamp

• Replace if damaged

4 Spring Clamp

• Replace if damaged
