Parking Brake Trim

Parking Brake Trim

Removing





- Fold back center armrest.

- Engage parking brake until lever is at an angle of - alpha - = 20°.

- Guide a flat-head screwdriver - 3 - through hole and press tab - 2 - upward with it.

- Remove handle - 1 - forward from parking brake lever.

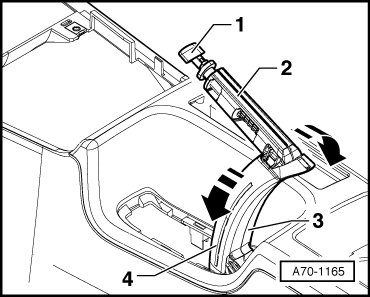

- Beginning at top, remove right trim - 3 - and left trim - 4 - in - direction of arrow - from parking brake lever.





- Using a flat-head screwdriver, pry press button - 1 - from parking brake lever - 2 -.

Installation

Installation is reverse of removal, but note the following:

- Maintain the following assembly sequence:

- Install left and right trim.

- Install handle.

- Install press button.

- Make sure the various attachments engage correctly (audibly).
