Comfort System Central Control Module

Comfort System Central Control Module

Special tools, testers and auxiliary items required

• Pry lever (80-200)

Removal

- Component location, in luggage compartment right rear below side trim.

- Right rear luggage compartment trim removed.

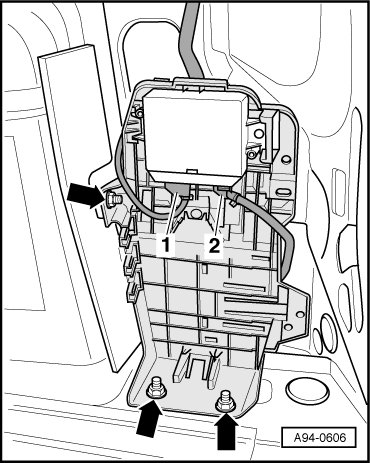

- Disconnect the connectors - 1 - and - 2 -.





- Remove nuts - arrow - and remove holding plate from control module.

- Lay open the wiring harness at holding plate using lever 80-200.

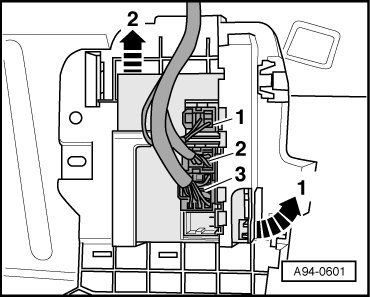

- Disconnect electrical harness connectors - 1 - to - 3 -.





- Press clip - arrow - to the side and pull control module out of holding plate.

- When installing, reinstall cable ties in the same place at which they were removed earlier.
