Headrest Guide

Headrest Guide

Removing





- Remove the headrests, refer to => [ Headrests with Locking Mechanism ] Headrests with Locking Mechanism.

- Remove backrest cover panel, refer to => [ Backrest Cover ] Backrest Cover.

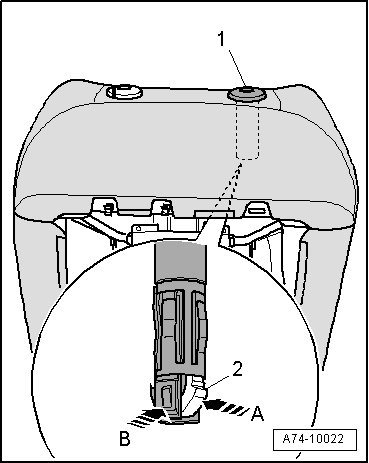

Headrest Guide without Release Button:

- Press catch - 2 - in - direction of arrow A - and press retaining claws in - direction of arrow B -.

- Pull headrest guide - 1 - upward out of mount.

• Headrest guide cannot be removed without destroying it.

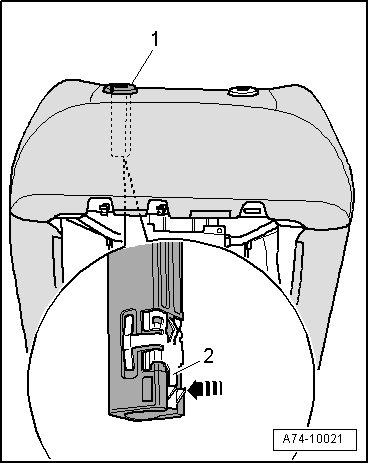

Headrest Guide with Release Button:





- Disengage catch - 2 - in - direction of arrow - and pull headrest guide - 1 - upward at the same time and out of mount.

Installation

Installation is reverse of removal, but note the following:

• The headrest guide can only be inserted in one position.

• Guide lug of headrest guide must engage in cut-out of mount for headrest guide.
