Cover, Separating from Left 1/3 Backrest Upholstery







Cover, Separating from Left 1/3 Backrest Upholstery

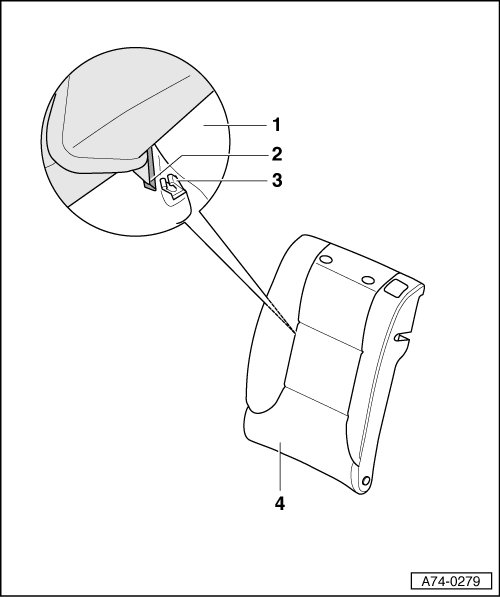

1 Cushion

2 Fastening Strips

3 Plastic Slips

• Replace if damaged

4 Cover

Removing

- Pry out grip channels - 2 - from plastic clips - 3 - using a screwdriver.

Installation

Installation is reverse of removal, but note the following:

- Replace damaged plastic clips.
