Seat Height Adjustment Handle







Seat Height Adjustment Handle

Removing





- Pull seat height adjustment handle up and hold in this position.

- Using a narrow screwdriver, press clips - 1 - inward - arrow A - and remove seat height adjustment handle - 2 - from lever - arrow B -.

Installation





Installation is reverse of removal, but note the following:

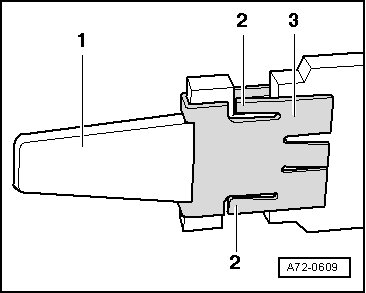

- Make sure the clip springs - 2 - (quantity: 2) - 3 - are positioned on outside of lever - 1 -.
