Four-Way Lumbar Support, Version 2

Four-Way Lumbar Support, Version 2

Special tools, testers and auxiliary items required

• Special Pop Rivet Pliers (V.A.G 1753A)





• Drill

• Drill bit dia. 7 mm

• Protective eyewear

Removing





- Remove backrest cover panel. Refer to => [ Backrest Cover ] Backrest Cover.

- Pry out peripheral fastening strips with a screwdriver.

- Insert foil between upholstery and backrest frame to protect against metal particles.

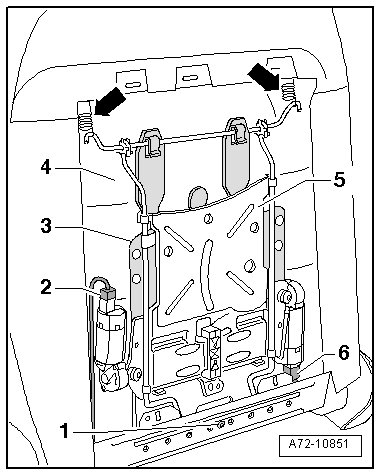

- Drill out rivet - 1 -.

- Disconnect the frame for the upper left and right four-way lumbar support - 5 - on the springs - arrows -.

- Disconnect the electrical connectors - 2 - and - 6 - on the motors for the lumbar support adjustment.

- Disconnect Velcro connector between four-way lumber support - 3 - and backrest upholstery - 4 -.

- Remove four-way lumbar support.

Installation





Installation is performed in reverse order of removal, noting the following:

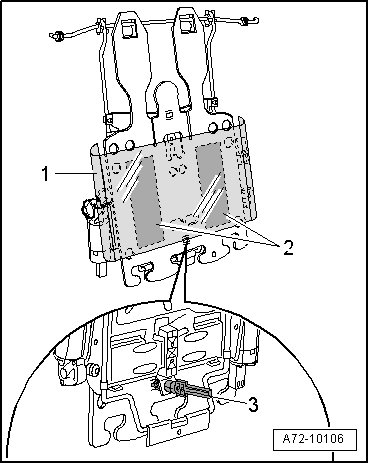

- Lay plastic film - 1 - over Velcro strips - 2 - on four-way lumbar support. Secure the plastic sheet on the four-way lumbar support.

- Make sure the four-way lumbar support is attached to four-way lumbar support frame with assembly fastener - 3 - or a suitable pin.

- Position lumbar support frame behind backrest and engage lumbar support frame at top left and right in mounts on frame.

- Rivet the lower frame for the four-way lumbar support to the backrest frame.

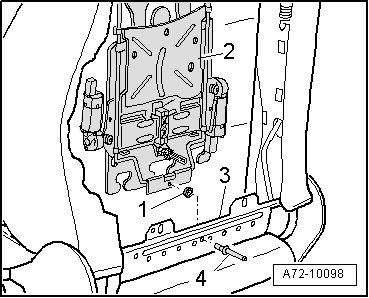

- Before securing rivet - 4 -, a plastic washer - 1 - must be placed between four-way lumbar support - 2 - and backrest frame - 3 -.

- Remove plastic film between backrest padding and four-way lumbar support.

- Press four-way lumbar support Velcro fastener onto backrest padding to secure.

- Connect electrical connectors to lumbar support adjustment motors.
