Front Door

Front Central Locking Button

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing





- Switch off ignition and remove ignition key.

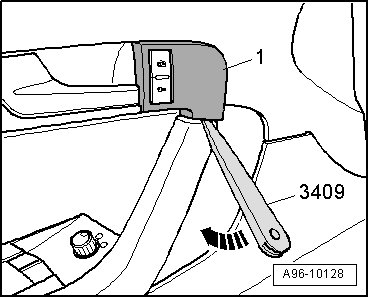

- Carefully pry the cover - 1 - with the (3409) out of the retaining clips - arrow -.

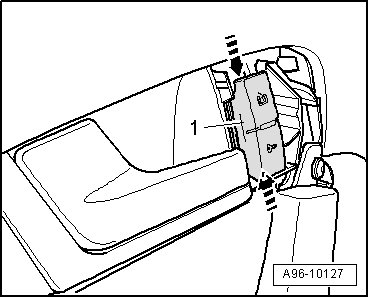

- Release the retaining clips - arrows - and carefully pull the central locking switch - 1 - out of the driver door trim.





- Unplug connector.

Installing

Install in reverse order of removal, noting the following:

- Press central locking switch into switch mount until catches engage.
