Body and Frame: Specifications

Technical Data

Type Plate / Vehicle Identification Number (VIN)

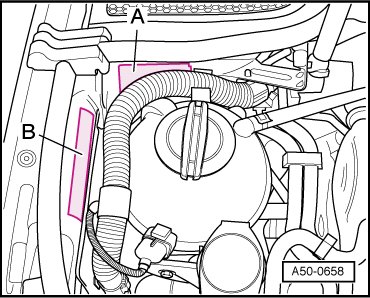

The vehicle identification number - B - (chassis number) is stamped into the upper inner longitudinal member.

The type plate - A - is fastened behind the right strut tower on the plenum chamber.





Vehicle Data Label

The vehicle data label is located at the rear in the spare wheel well.

For additional information concerning bonded joints refer to
