Diagram 157/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

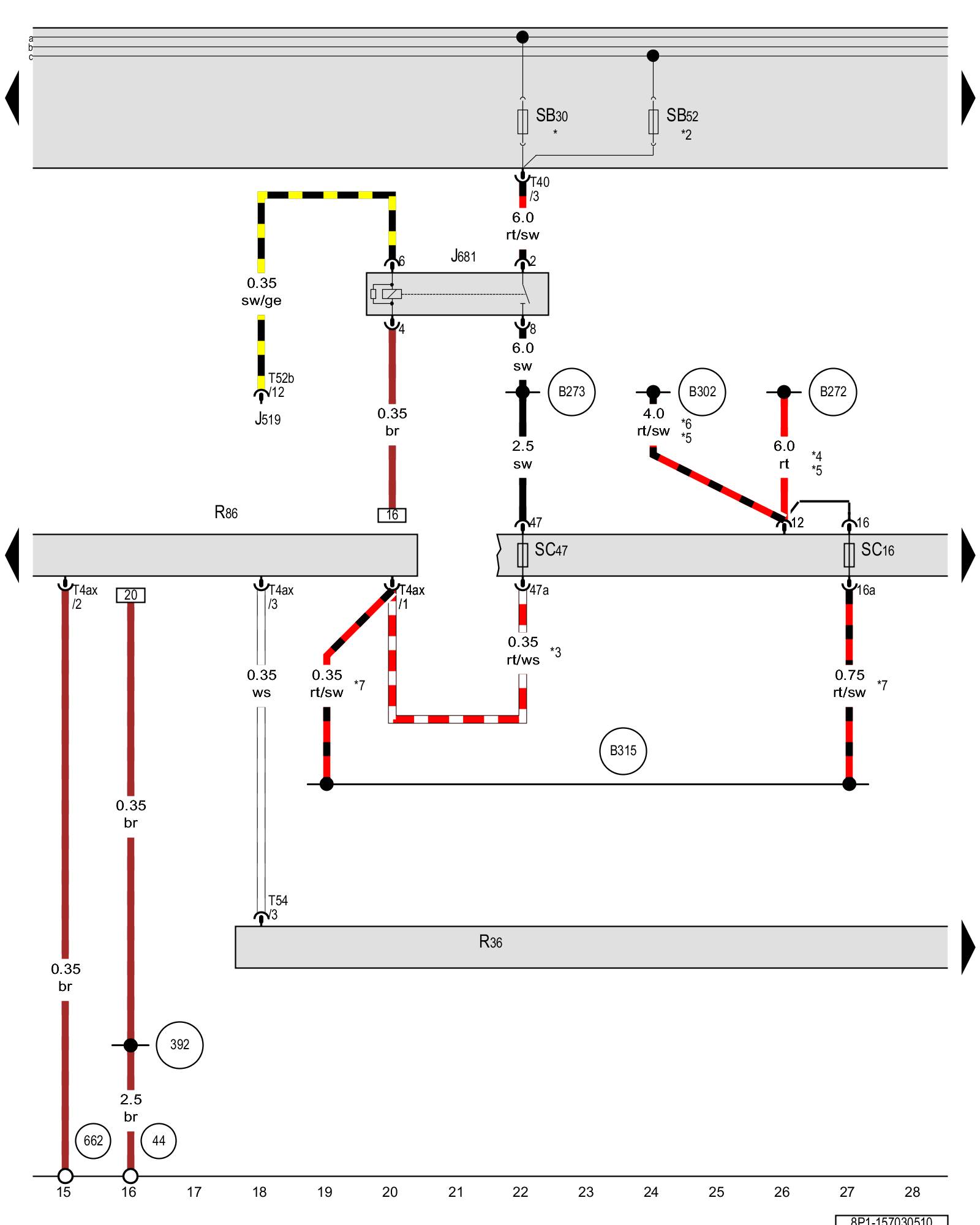

Terminal 15 power supply relay 2, Telephone transceiver, Cellular telephone amplifier





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J681 - Terminal 15 power supply relay 2 Overview Of Relay

R36 - Telephone transceiver Phone System Component Overview

R86 - Cellular telephone amplifier Overview Of Control Modules

SC16 - Fuse 16 (on fuse panel C) Overview Of Fuses

SB30 - Fuse 30 (on fuse panel B) Overview Of Fuses

SC47 - Fuse 47 (on fuse panel C) Overview Of Fuses

SB52 - Fuse 52 (on fuse panel B) Overview Of Fuses

T4ax - 4-pin connector

T40 - 40-pin connector

T52b - 52-pin connector

T54 - 54-pin connector

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(392) - Ground connection 27 (in main wiring harness)

(662) - Ground connection in left rear side panel Overview Of Ground Connections in Interior Of Vehicle

(B272) - Positive connection (30) (in main wiring harness)

(B273) - Positive connection (15) (in main wiring harness)

(B302) - Positive connection 6 (30) (in main wiring harness)

(B315) - Positive connection 1 (30a) (in main wiring harness)

* - E-Box low

*2 - E-Box high

*3 - Omitted as a running change

*4 - Only for vehicles with a battery in the engine compartment

*5 - Refer to applicable wiring diagram

*6 - Only for vehicles with a battery in the luggage compartment

*7 - Running change

Previous Diagram 157/2 (Tracks 1-14)

Next Diagram 157/4 (Tracks 29-42)
