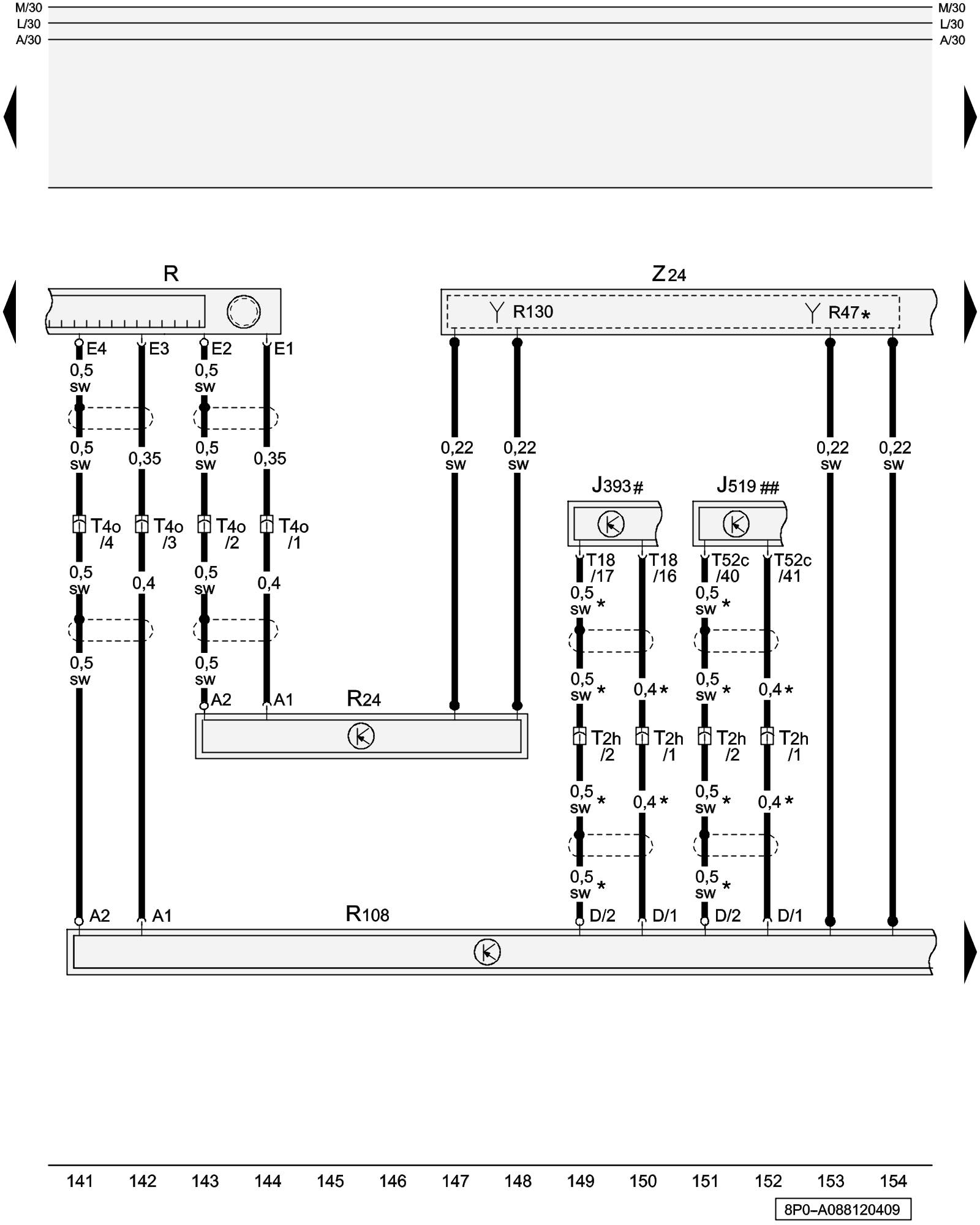

Diagram 88/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Left Antenna Module, Rear Window Antenna 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J393 - Comfort System Central Control Module Overview Of Control Modules

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

R - Radio Control Modules in Interior Of Vehicle

R24 - Antenna Amplifier Locations

R47 - Central Locking and Anti-Theft Alarm System Antenna Locations

R108 - Left Antenna Module Locations

R130 - Rear Window Antenna 1 Locations

T2h - Double Connector, on C-pillar, right

T4o - 4-Pin Connector, near right C-pillar

T18 - 18-Pin Connector, brown (Connector A)

T52c - 52-Pin Connector, brown (Connector C)

Z24 - Rear Window Defogger with Window Antenna Locations

* - Only models with central locking system or anti-theft alarm system

# - Not applicable from May 2009

## - Applicable from May 2009

Previous Diagram 88/11 (Tracks 127-140)

Next Diagram 88/13 (Tracks 155-168)
