Diagram 136/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

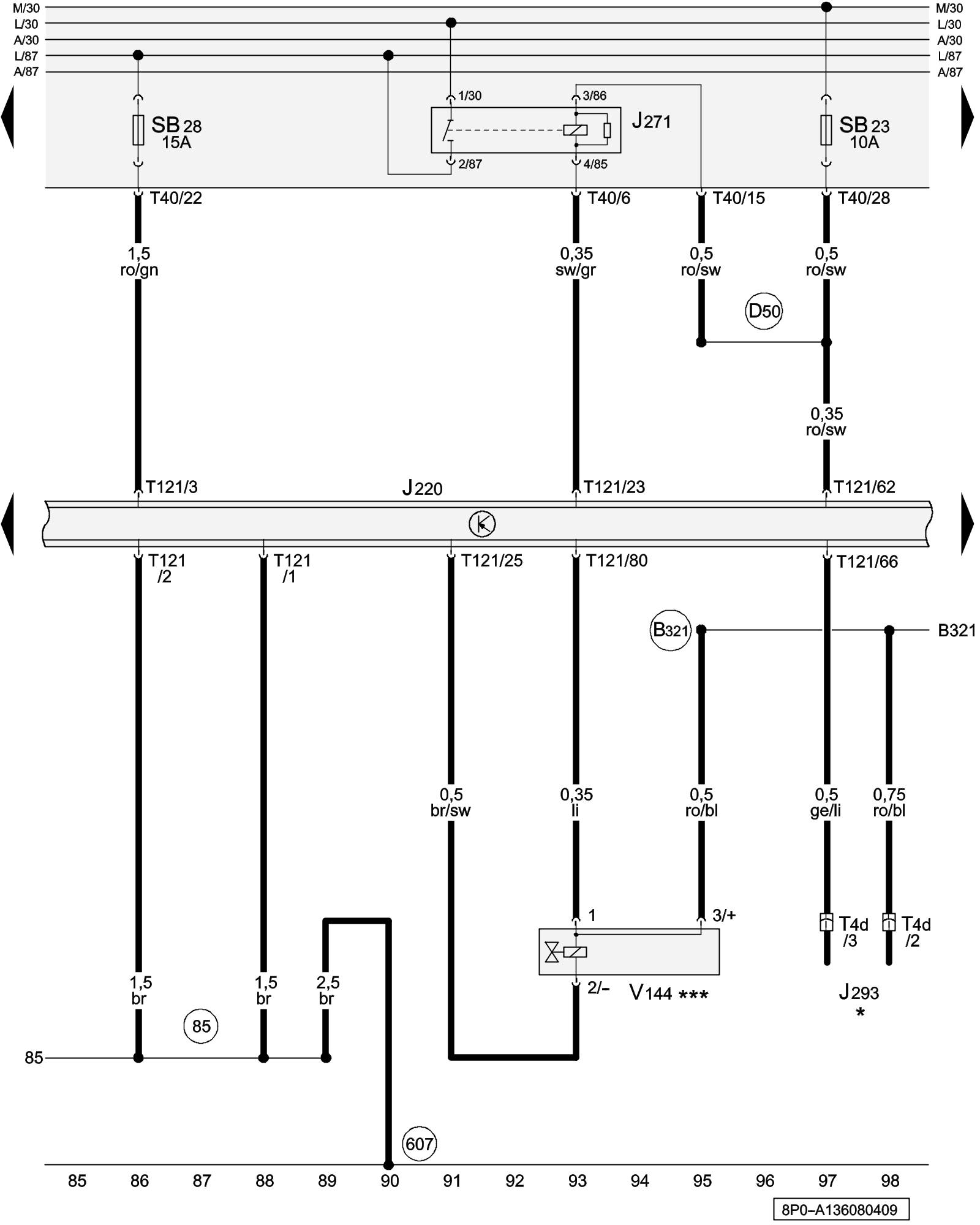

Motronic Engine Control Module (ECM) Power Supply Relay, Leak Detection Pump (LDP)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J220 - Motronic Engine Control Module (ECM) Control Modules in Front Part Of Vehicle

J271 - Motronic Engine Control Module (ECM) Power Supply Relay Overview Of Relay

J293 - Coolant Fan Control (FC) Control Module Control Modules in Front Part Of Vehicle

SB23 - Fuse 23 (on fuse panel B) Overview Of Fuses

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses

T4d - 4-Pin Connector, black, on coolant fan control (FC) (front end)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

T121 - 121-Pin Connector, black, on engine control module (ECM)

V144 - Leak Detection Pump (LDP) Locations [1][2]Diagrams

(85) - Ground Connection 1 (in engine compartment wiring harness)

(607) - Ground Connection (in plenum chamber, left) Overview Of Ground Connections in Front Part Of Vehicle

(B321) - Plus Connection 7 (30a) (in main wiring harness)

(D50) - Plus Connection (30) (in engine compartment wiring harness)

* - => Applicable Wiring Diagram Coolant Fan Control

*** - Only models with US equipment

Previous Diagram 136/7 (Tracks 71-84)

Next Diagram 136/9 (Tracks 99-112)
