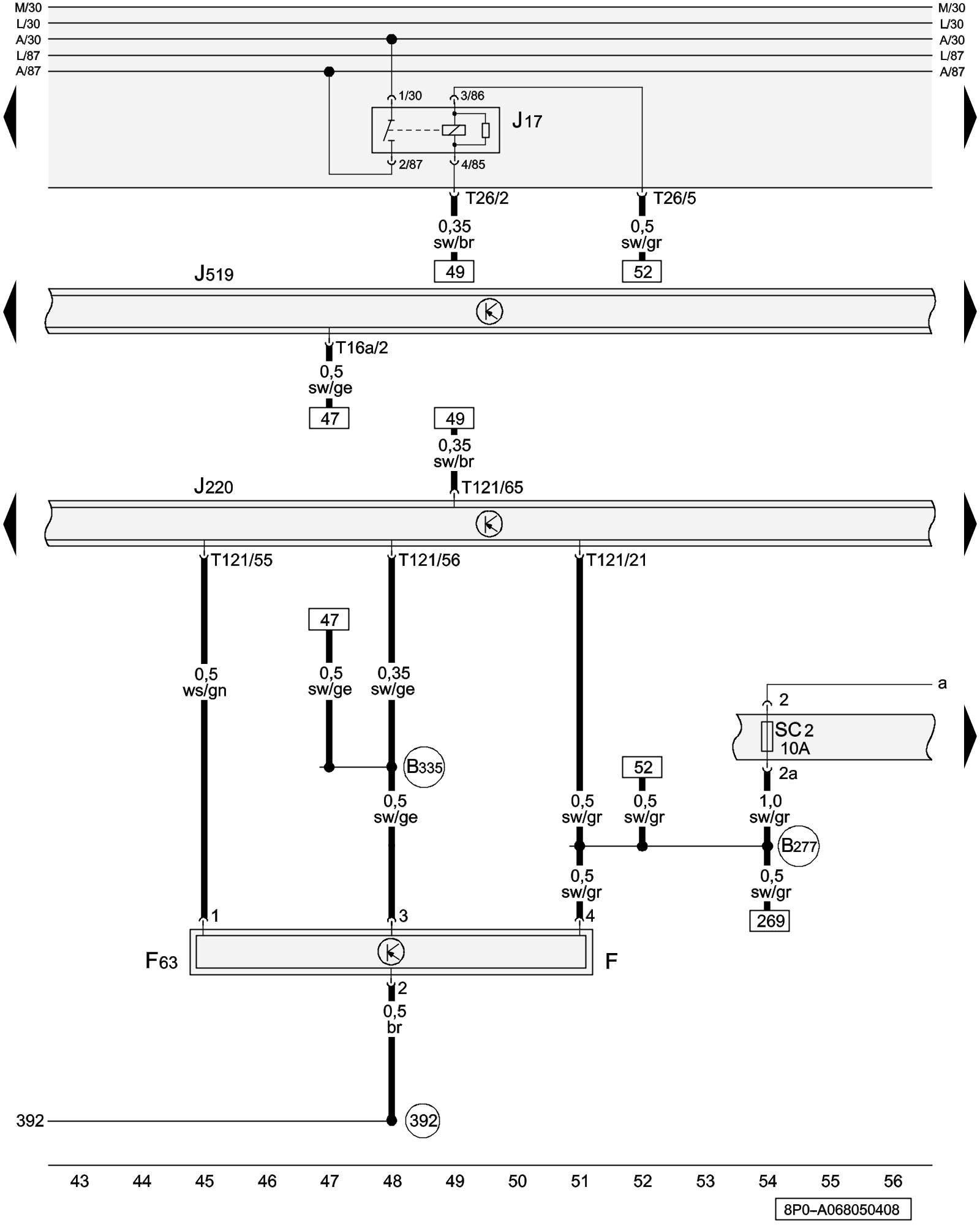

Diagram 68/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Brake Light Switch, Brake Pedal Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Locations [1][2]Brake Light Switch

F63 - Brake Pedal Switch Locations [1][2]Brake Light Switch

J17 - Fuel Pump (FP) Relay Overview Of Relay

J220 - Motronic Engine Control Module (ECM) Control Modules in Front Part Of Vehicle

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

T16a - 16-Pin Connector, black (Connector E)

T26 - 26-Pin Connector, black, on electronics box engine compartment (Connector K)

T121 - 121-Pin Connector, black, on engine control module (ECM)

(392) - Ground Connection 27 (in main wiring harness)

(B277) - Plus Connection 1 (15a) (in main wiring harness)

(B335) - Connection 1 (54) (in main wiring harness)
