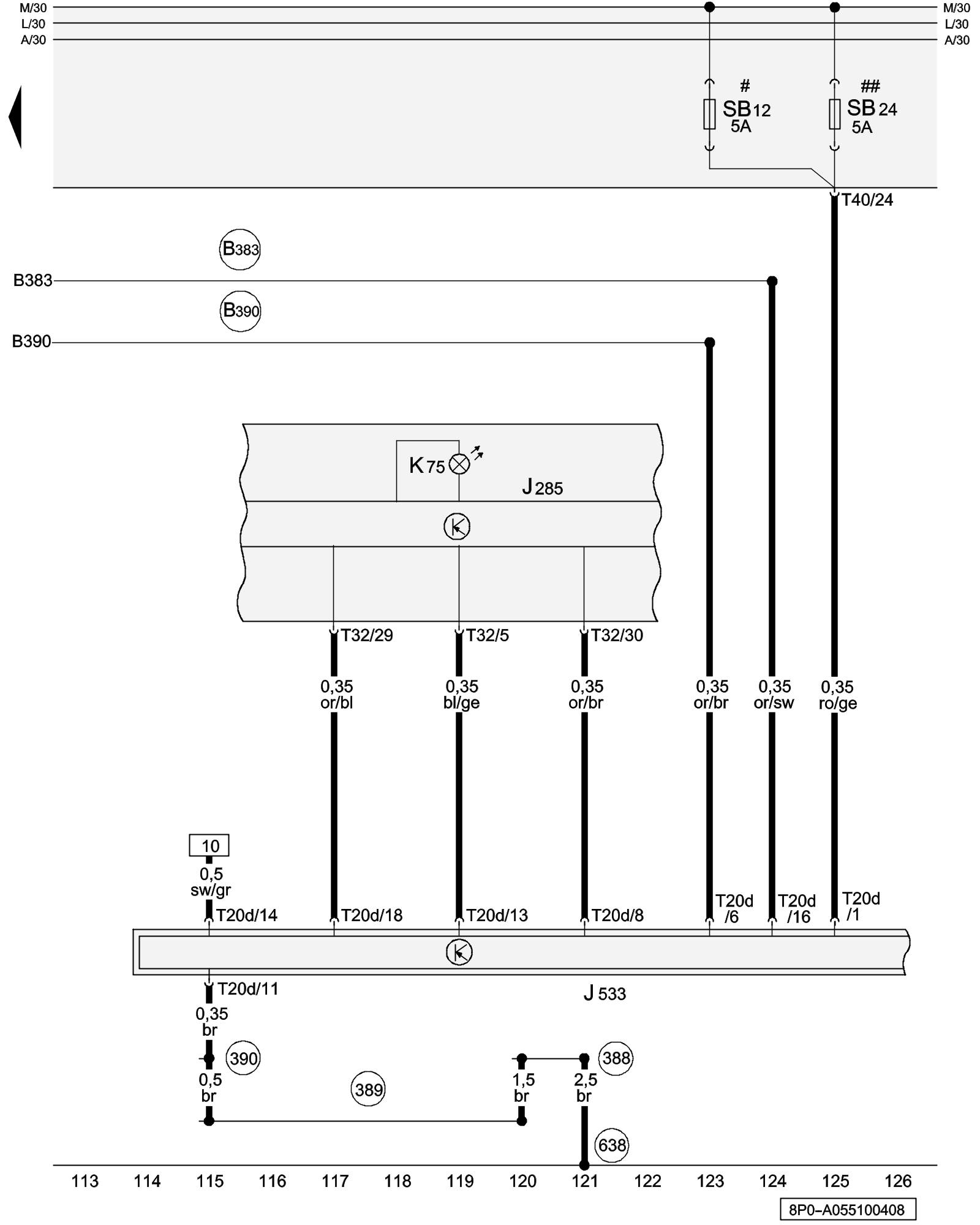

Diagram 55/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Instrument Cluster Control Module, Airbag Malfunction Indicator Lamp (MIL)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module Control Modules in Interior Of Vehicle

J533 - Data Bus On Board Diagnostic Interface Control Modules in Interior Of Vehicle

K75 - Airbag Malfunction Indicator Lamp (MIL)

SB12 - Fuse 12 (on fuse panel B) Overview Of Fuses

SB24 - Fuse 24 (on fuse panel B) Overview Of Fuses

T20d - 20-Pin Connector, black (Connector A)

T32 - 32-Pin Connector, blue (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(388) - Ground Connection 23 (in main wiring harness)

(389) - Ground Connection 24 (in main wiring harness)

(390) - Ground Connection 25 (in main wiring harness)

(638) - Ground Connection (on right A-pillar) Overview Of Ground Connections in Interior Of Vehicle

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

# - Only models with electronics box Low

## - Only models with electronics box High
