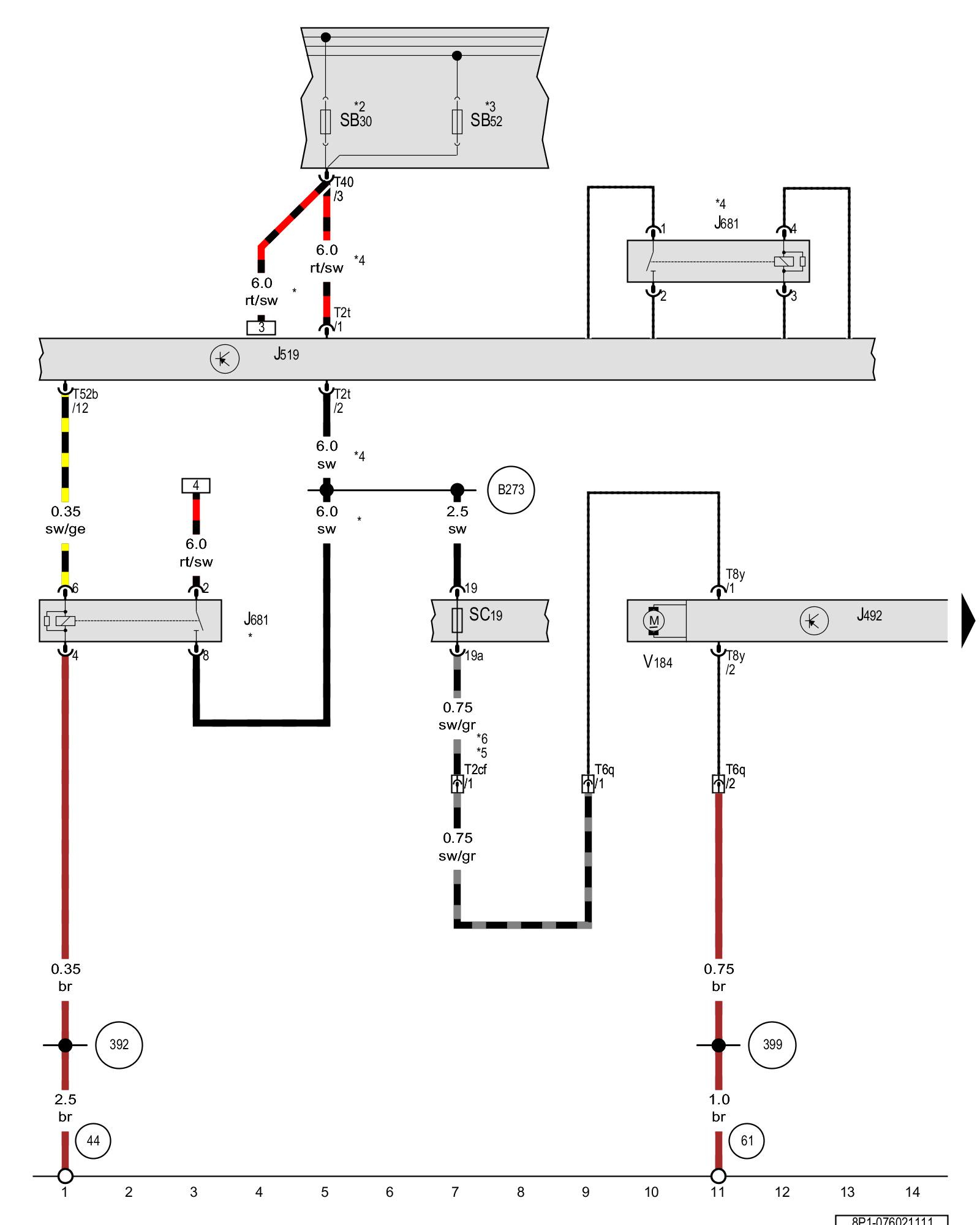

Diagram 76/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


All wheel drive control module, Vehicle electrical system control module, Terminal 15 power supply relay 2, Oil pressure actuator





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J492 - All wheel drive control module Overview Of Control Modules

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J681 - Terminal 15 power supply relay 2 Overview Of Relay

SC19 - Fuse 19 (on fuse panel C) Overview Of Fuses

SB30 - Fuse 30 (on fuse panel B) Overview Of Fuses

SB52 - Fuse 52 (on fuse panel B) Overview Of Fuses

T2cf - Double connector

T2t - Double connector

T6q - 6-pin connector

T8y - 8-pin connector

T40 - 40-pin connector

T52b - 52-pin connector

V184 - Oil pressure actuator Rear Final Drive 02D And 0AV

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(61) - Ground connection on left C-pillar Overview Of Ground Connections in Rear Part Of Vehicle (3-door Models)

(392) - Ground connection 27 (in main wiring harness)

(399) - Ground connection 34 (in main wiring harness)

(B273) - Positive connection (15) (in main wiring harness)

* - From May 2009

*2 - E-Box low

*3 - E-Box high

*4 - Through April 2009

*5 - Only for right-hand drive vehicles

*6 - Only for RS3

Next Diagram 76/3 (Tracks 15-28)
