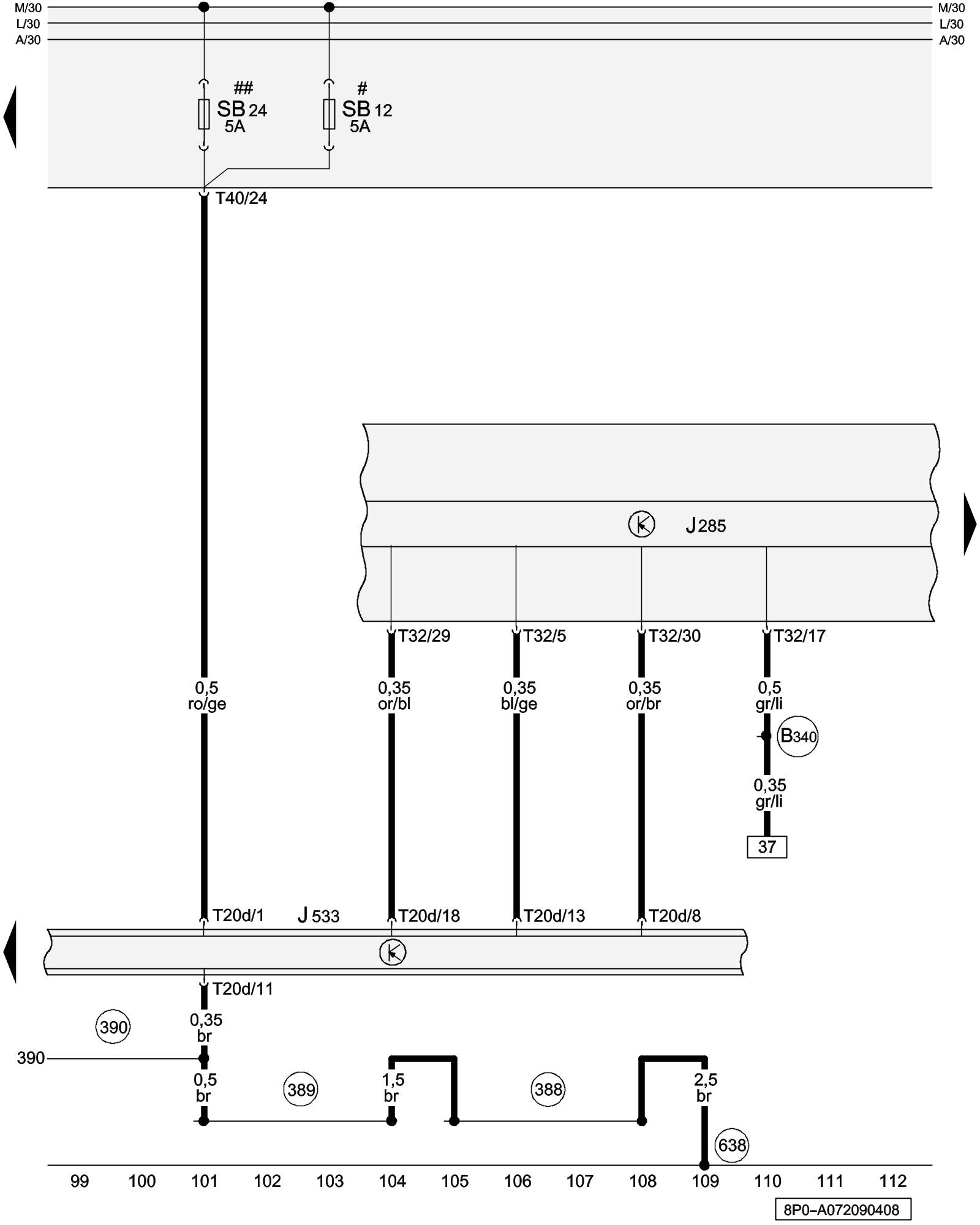

Diagram 72/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Data Bus On Board Diagnostic Interface, Instrument Cluster Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module Control Modules in Interior Of Vehicle

J533 - Data Bus On Board Diagnostic Interface Control Modules in Interior Of Vehicle

SB12 - Fuse 12 (on fuse panel B) Overview Of Fuses

SB24 - Fuse 24 (on fuse panel B) Overview Of Fuses

T20d - 20-Pin Connector, black (Connector A)

T32 - 32-Pin Connector, blue (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(388) - Ground Connection 23 (in main wiring harness)

(389) - Ground Connection 24 (in main wiring harness)

(390) - Ground Connection 25 (in main wiring harness)

(638) - Ground Connection (on right A-pillar) Overview Of Ground Connections in Interior Of Vehicle

(B340) - Connection 1 (58d) (in main wiring harness)

# - Only models with electronics box Low

## - Only models with electronics box High
