Timing Components: Specifications

Camshaft Timing Chain Sprocket 60 Nm +90°
Always replace

Camshaft Timing Chain Tensioner 40 Nm

Lower Timing Chain Cover 10 Nm

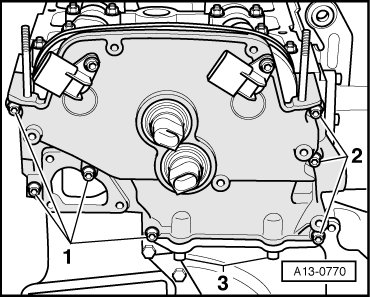

Upper Timing Chain Cover - Tightening Specifications and Tightening Sequence





1. Pre-tighten the bolts - 1 - and - 2 - to 5 Nm.
2. Tighten the bolts - 3 - to 23 Nm.
3. Tight the bolts - 1 - and - 2 - to 10 Nm.

Vibration Damper Bolt 100 Nm plus an additional 180°
