Tire Pressure Monitoring Button, From 06.2004 Through 05.2008

Tire Pressure Monitoring Button, from 06.2004 through 05.2008

Special tools, testers and auxiliary items required

• Special hook (3370)

Removing

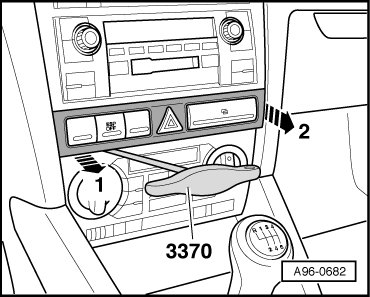

Vehicles with a small radio slot

- Switch off ignition and remove ignition key.

- Remove the radio.

- Remove the lower trim for the switch unit - arrow 1 -.

- Remove the upper trim for the selector unit using (3370) - arrow 2 -.

- Remove the selector unit.

Vehicles with large radio slot






- Remove the lower trim for the selector unit - arrow 1 -.

- Remove the side trim for the selector unit using (3370) - arrow 2 -.

- Remove the selector unit.

All

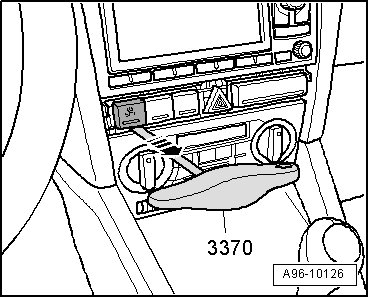

- Carefully remove the tire pressure control indicator button with the (3370) from the switch mount - arrow -.

- Unplug connector.

Installing

Install in reverse order of removal, noting the following:

- Connect electrical connector.

- Press switch into instrument panel mount and engage.

- Remove the radio.
