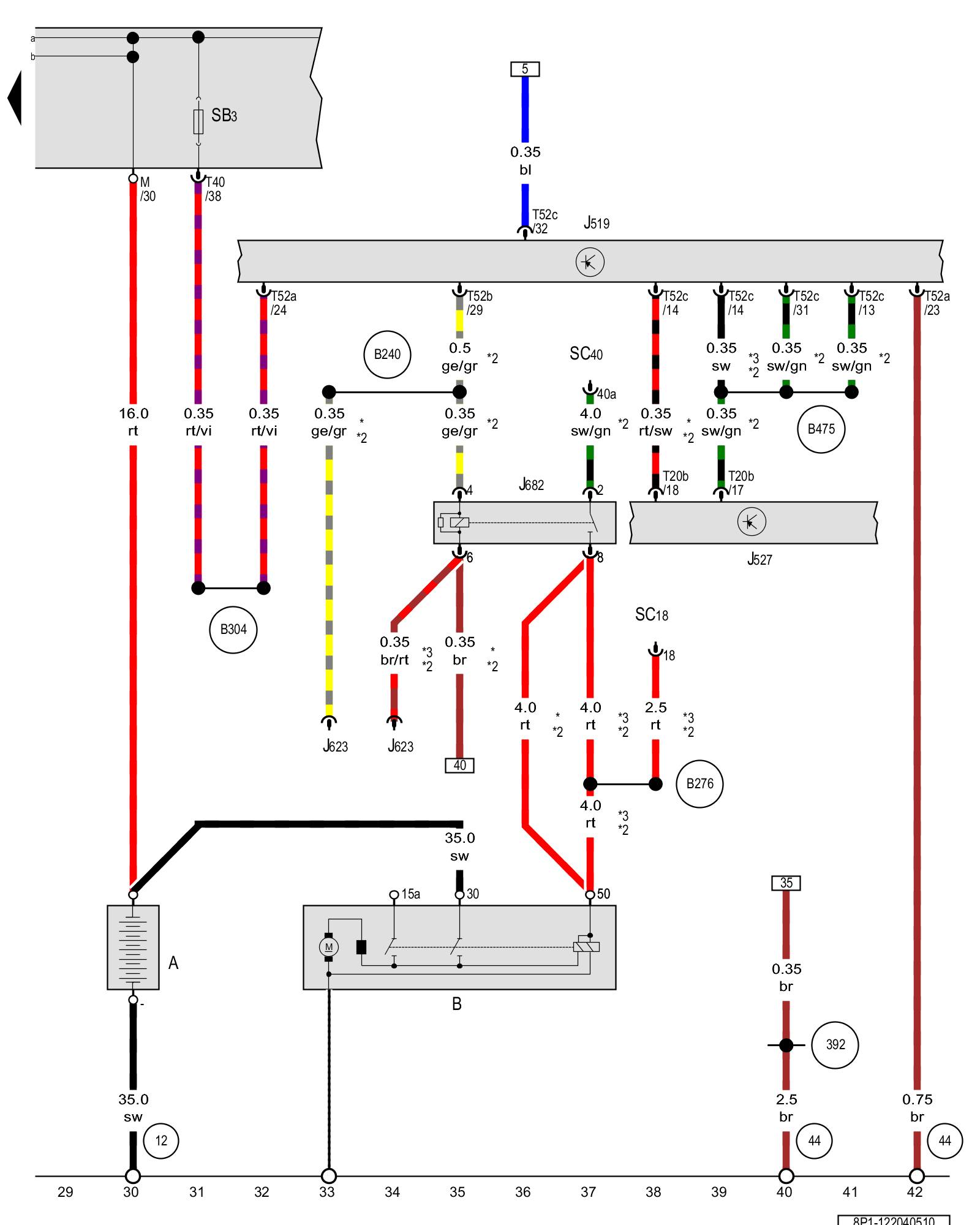

Diagram 122/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Battery, Starter, Terminal 50 power supply relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J527 - Steering column electronics control module Control Modules in Interior Of Vehicle

J623 - Engine control module Control Modules in Front Part Of Vehicle

J682 - Terminal 50 power supply relay Overview Of Relay

SB3 - Fuse 3 (on fuse panel B) Overview Of Fuses

SC18 - Fuse 18 (on fuse panel C) Overview Of Fuses

SC40 - Fuse 40 (on fuse panel C) Overview Of Fuses

T1 - Single connector

T20b - 20-pin connector

T40 - 40-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(12) - Ground connection in engine compartment, left Overview Of Ground Connections in Front Part Of Vehicle

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(392) - Ground connection 27 (in main wiring harness)

(B240) - Positive connection 2 (50) (in interior wiring harness)

(B276) - Positive connection (50) (in main wiring harness)

(B304) - Positive connection 8 (30) (in main wiring harness)

(B475) - Connection 11 (in main wiring harness)

* - not for vehicles with engine code CBFA

*2 - Refer to applicable engine wiring diagram

*3 - only for vehicles with engine code CBFA
