Fuel Level Sensor, Checking

Fuel Level Sensor, Checking

Special tools, testers and auxiliary items required

• Hand-Held Multimeter (V.A.G 1526C)

• Connector Test Set (V.A.G 1594C)

Test Sequence

- Remove rear seat bench.

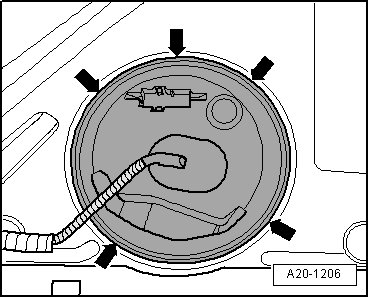

- Unclip catches - arrows - of right connector flange cover.

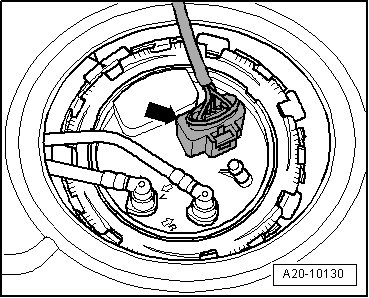

- Disconnect electrical harness connector - arrow - at locking flange.

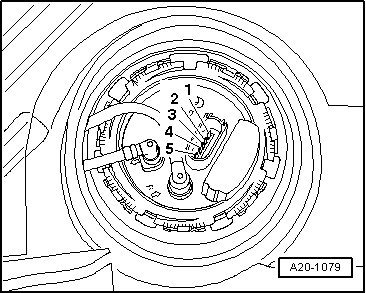

• On vehicles with 3-wire sensor technology, the connector for fuel level sensor (G) is equipped with 5 terminals.





- Connect multimeter between terminal - 2 - and - 3 - for resistance measurement.

Fuel level sensor installed:

• Sensor at lower stop: approximately 270 ohms.

• Sensor at upper stop: approximately 70 ohms.

• To check resistance values tank full or tank empty, the fuel delivery unit must be removed. Refer to => [ Fuel Delivery Unit ] Fuel Delivery Unit and the sensor floater must be placed in upper or lower end position.

• If measured value is 0 ohms there is a short circuit. If measured value is infinity ohms there is and open circuit in the wiring.

• With fuel level sensor removed, the following values are obtained because of the greater deflection of the floater arm:

Fuel Level Sensor removed:

• Sensor at lower stop: approximately 290 ohms.

• Sensor at upper stop: approximately 60 ohms.

- Connect multimeter between terminal - 3 - and - 4 - for resistance measurement.

Fuel level sensor installed or removed:

• Arbitrary sensor position: approximately 340 ohms.

Assembly is in reverse order of removal, note the following:

- Install rear seat bench.
