Fuel Injection System

Special Tools






Special tools, testers and auxiliary items required

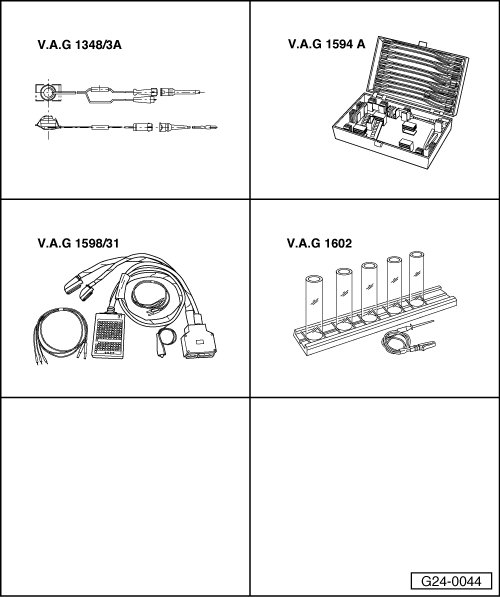

• Remote control (V.A.G 1348/3 A) with adapter cable (V.A.G 1348/3-2)

• Connector test kit (V.A.G 1594 C) or (V.A.G 1594 A)

• Adapter cable (V.A.G 1598/31) (test box)

• Injector quantity testing device (V.A.G 1602)






Special tools, testers and auxiliary items required

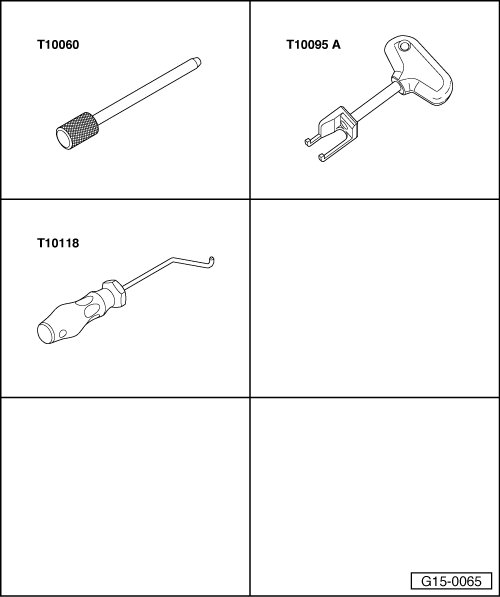

• Drift (T10060)

• Puller For Ignition Coil (T10095 A)

• Assembly tool (T10118)

Special tools, testers and auxiliary items required

• Hot air gun (from wiring harness repair kit (VAS 1978))





• Attachment nozzle (from wiring harness repair kit (VAS 1978))

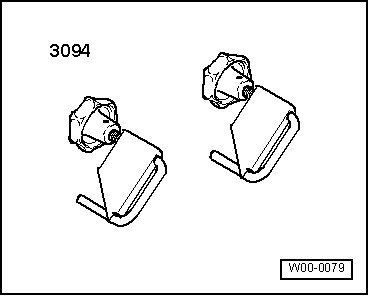

• Hose clamps up to 25 mm dia. (3094)

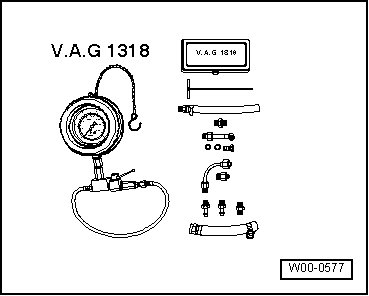

• Fuel Inj. Pressure Gauge-CIS K-Jetronic (V.A.G 1318) with adapters (V.A.G 1318/11), (V.A.G 1318/17) and (V.A.G 1318/23)

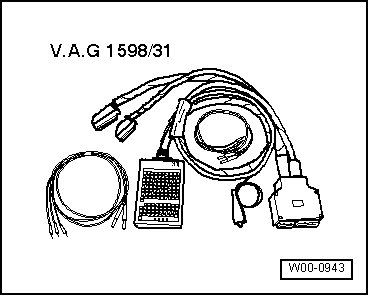

• Adapter cable (V.A.G 1598/31) (test box)

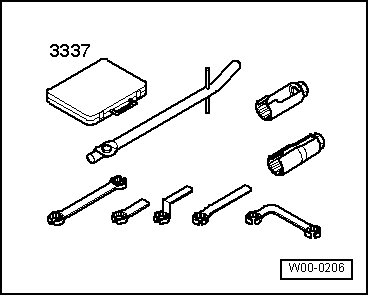

• Ring spanner 7-piece set for oxygen sensor (3337)
