Airbag Component Locations

Component Locations: Airbag Systems

Airbag Component Locations

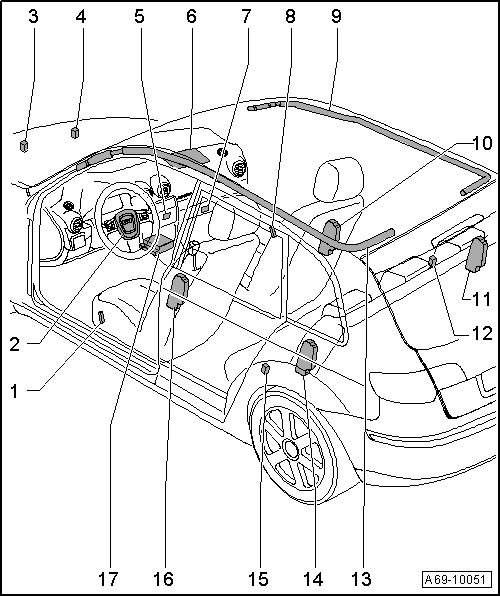

Component A - B are not shown in the overview





A - Battery Interrupt Igniter -N253- => [ Battery Interrupt Igniter ] See Image Below.
• Located in the right front area of luggage compartment

B - Airbag Spiral Spring/Return Spring With Slip Ring -F138- => [ Steering Wheel with Airbag Assembly Overview ] See Image Below.

1 - Driver Side Airbag Crash Sensor -G179- => [ Airbag Crash Sensors ] Airbag Crash Sensors
• Located in the front door

2 - Driver Airbag Igniter -N95- and Driver Airbag Igniter 2 -N250-
• Located in the steering column

3 - Driver Front Airbag Crash Sensor -G283- => [ Airbag Crash Sensors ] Airbag Crash Sensors
• Located near the headlights

4 - Front Passenger Front Airbag Crash Sensor -G284- => [ Airbag Crash Sensors ] Airbag Crash Sensors
• Located near the headlights

5 - Front Passenger Airbag Disabled Indicator Lamp -K145-

6 - Front Passenger Airbag Igniter 1 -N131- and Front Passenger Airbag Igniter 2 -N132-
• Located under the passenger side dash board

7 - Front Passenger Airbag -Off- Key Switch -E224-
• Not applicable for North America

8 - Front Passenger Side Airbag Crash Sensor -G180- => [ Airbag Crash Sensors ] Airbag Crash Sensors
• Located in the front door

Airbag component locations continued





9 - Front Passenger Side Curtain Airbag Igniter -N252-
• Located on the passenger-side left roof rail

10 - Front Passenger Side Airbag Igniter -N200-
• Located right side of the front passenger seat

11 - Rear Passenger Side Airbag (front Passenger side) Igniter -N202-
• Located right side of the rear passenger - side seat
• Only for some countries

12 - Rear Side Airbag Crash Sensor (on front Passenger side) -G257- => [ Airbag Crash Sensors ] Airbag Crash Sensors
• Located on the rear wheel housing liner facing forward

13 - Driver Side Curtain Airbag Igniter -N251-
• Located on the driver-side left roof rail

14 - Rear Passenger Side Airbag (Driver side) Igniter -N201-
• Located left side of the rear driver-side seat
• Only for some countries

15 - Rear Side Airbag Crash Sensor (on Driver side) -G256- => [ Airbag Crash Sensors ] Airbag Crash Sensors
• Located on the rear wheel housing liner facing forward

16 - Driver Side Airbag Igniter -N199-
• Located left side of the driver seat

17 - Airbag Control Module -J234-
• Located behind the front center console

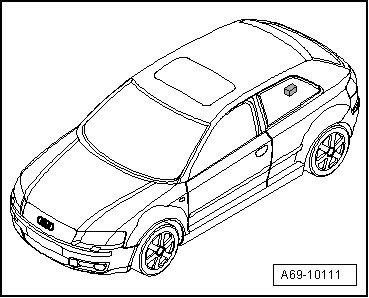

Battery Interrupt Igniter






- - Battery Interrupt Igniter -N253-

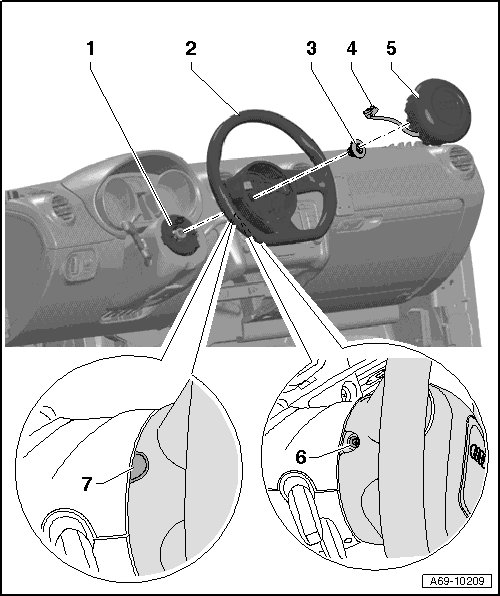

Steering Wheel with Airbag Assembly
Overview






1 - Airbag Spiral Spring/Return Spring With Slip Ring -F138-
2 - Steering Wheel with Airbag
