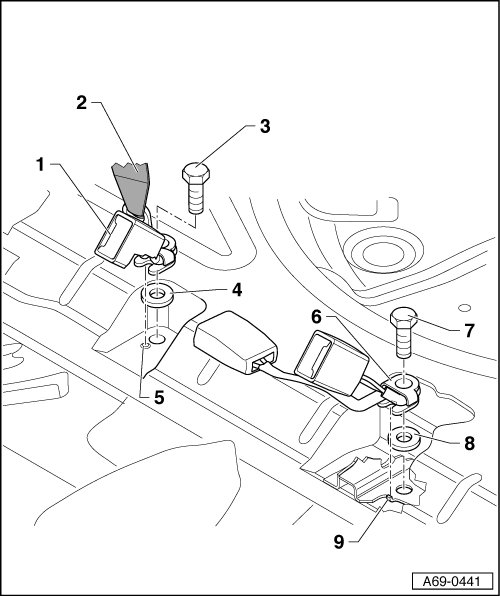

Rear Center Floor Assembly Mounting Point

Rear Center Floor Assembly Mounting Point






1 Right Seat Belt Latch

Removing

- Remove the rear bench seat. Refer to => [ Rear Bench Seat ] Rear Bench Seat.

- Remove the bolt - 3 -.

- Remove the seat belt latch - 1 - with belt and anchor - 2 -.

Installation

To install, perform the steps used in removal in reverse order. Note the following:

• When installing seat belt latch, ensure position to anti-rotation protection - 5 - is correct.

2 Belt with Anchor

• For third rear three-point seat belt

3 Bolt

55 Nm

• In seat belt delivery package

• If rear out floor assembly anchorage point is being removed for accident repairs, screw - 3 - must be replaced.

4 Window

• In seat belt delivery package

5 Anti-Rotation Protection

6 Left Seat Belt Latches

Removing

- Remove the rear bench seat. Refer to => [ Rear Bench Seat ] Rear Bench Seat.

- Remove the bolt - 7 -.

- Remove seat belt latches - 6 -.

Installation

To install, perform the steps used in removal in reverse order. Note the following:

• When installing seat belt latches - 6 -, ensure position to anti-rotation protection - 9 - is correct.

7 Bolt

55 Nm

• In seat belt delivery package

• If rear out floor assembly anchorage point is being removed for accident repairs, screw - 7 - must be replaced.

8 Window

• In seat belt delivery package

9 Anti-Rotation Protection
