Engine Codes BPY, CBFA, CCTA

Coolant Temperature Sensors, Connector Assignment

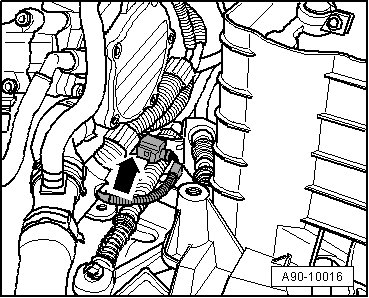

Engine Coolant Temperature Sensor (G62)






The engine coolant temperature sensor sits on coolant connector adapter on left of cylinder head.

- Carefully release and remove 2-pin electrical connector - arrow -.

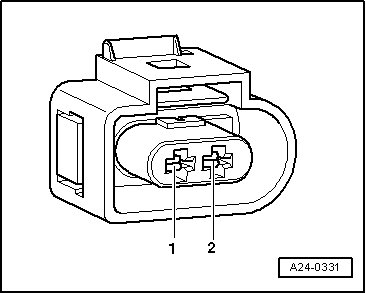

Terminal assignment of the 2-pin harness connector at engine coolant temperature sensor






1. Wire connection from engine coolant temperature sensor to engine control module

2. Sensor ground

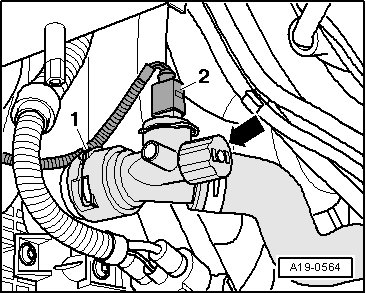

Engine coolant temperature sensor on radiator (G83)






The engine coolant temperature sensor on radiator sits on the bottom left of the radiator.

- Carefully release and remove 2-pin electrical connector - arrow -.

• Ignore - item 1 - and - item 2 -.

2-pin connector assignment on engine coolant temperature sensor on radiator






1. Wiring connection from engine coolant temperature sensor on radiator to engine control module

2. Sensor ground
