Suspension Control ( Automatic - Electronic ): Locations

Component Locations: Suspension System

Magnetic Ride Electronically-Controlled Damping Overview







1 - Shock Absorber with Right Front Dampening Adjustment Valve -N337-

2 - Right Front Level Control Sensor -G289- => [ Front Level Control Sensor ] See Image Below.

3 - Electronic Damping Control Module -J250- => [ Electronic Damping Control Module ] See Image Below.
• Installed under the passenger seat

4 - Dampening Adjustment Button -E387-
• Installed in the center console switch strip

5 - Shock Absorber with Right Rear Dampening Adjustment Valve -N339-

6 - Right Rear Level Control System Sensor -G77- => [ Rear Level Control System Sensor ] See Image Below.

7 - Shock Absorber with Left Rear Dampening Adjustment Valve -N338-

8 - Left Rear Level Control System Sensor -G76- => [ Rear Level Control System Sensor ] See Image Below.

9 - Dampening Adjustment Indicator Lamp -K189-
• Located in the instrument cluster

10 - Shock Absorber with Left Front Dampening Adjustment Valve -N336-

11 - Left Front Level Control System Sensor -G78- => [ Front Level Control Sensor ] See Image Below.

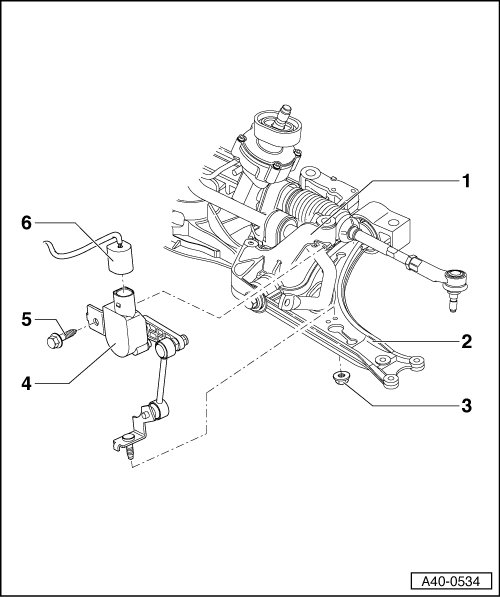

Front Level Control Sensor






4 - Right Front Level Control Sensor -G289- /Left Front Level Control System Sensor -G78-

Electronic Damping Control Module






1 - Electronic Damping Control Module -J250-

Rear Level Control System Sensor






4 - Right Rear Level Control System Sensor -G77- /Left Rear Level Control System Sensor -G76-
