Selector Lever Scale Illumination Bulb (L101), Vehicles With Selector Lever Boots

Selector Lever Scale Illumination Bulb (L101), Vehicles with Selector Lever Boots

Removing

- Move the selector lever into "N".

- Turn off the ignition and remove the key.

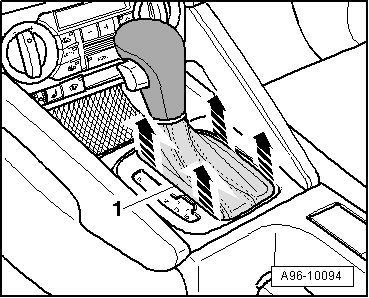

- Remove the frame for the selector lever boot - 1 - - arrows -.





- Fold up the selector lever boot.

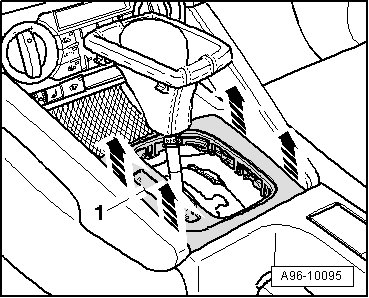

- Remove the cover for the selector lever - 1 - from the middle console and lift this upwards - arrows -.





- Remove the selector lever cover.

- Disconnect the connector.

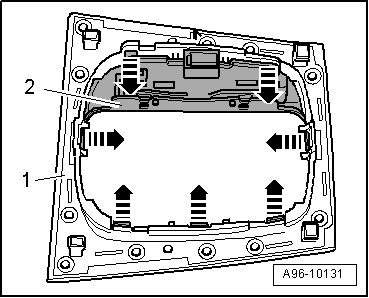

- Release the retaining springs - arrows - and remove the trim frame with the selector lever scale illumination bulb - 2 - from the selector lever cover - 1 -.





Installation

Installation is performed in the reverse order of removal.
