Haldex-Clutch (Generation Haldex IV), Rear Final Drive 0BR, 0BS and 0BY, Checking Functions

Haldex-Clutch (Generation Haldex IV), Rear Final Drive 0BR, 0BS and 0BY, Checking Functions

Identification on Rear Final Drives "0BR" and "0BY"






• The ID - arrow - on the bottom side of the final drive identifies which final drive is installed.

• The Haldex clutch test is performed during a road test with the vehicle diagnosis tester.

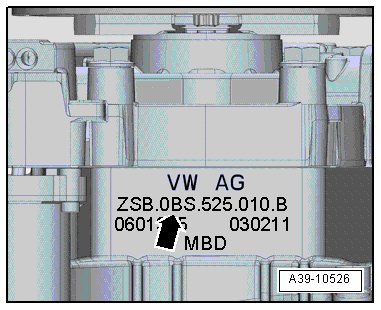

Rear Final Drive Designation "0BS"







To prevent possible injury when performing measuring tests or test drives, always refer to => [ Safety Precautions ] Safety Precautions.

- Connect the vehicle diagnosis tester with the ignition on the Data Link Connector (DLC) turned off.

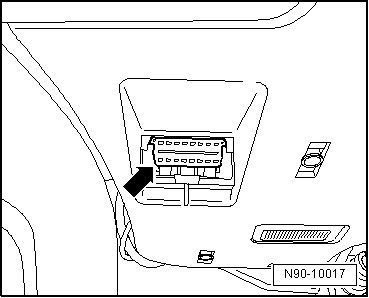

Installed location: Front left footwell, near hood opener.

Enter "Guided Fault Finding":

- Turn on the ignition.

- Touch "Guided Fault Finding" on the screen.

- Select the following in this sequence:

• Brand

• Type

• Model year

• Version

• Engine code

• Confirm the information entered.

• 22 - AWD electronics

• 22 - Output Diagnostic Test Mode

- Start the output diagnostic test mode and follow the instructions on the tester.
