Rear Final Drive 0BR and 0BY, Electric and Electronic Components and Installation Locations

Rear Final Drive 0BR and 0BY, Electric and Electronic Components and Installation Locations

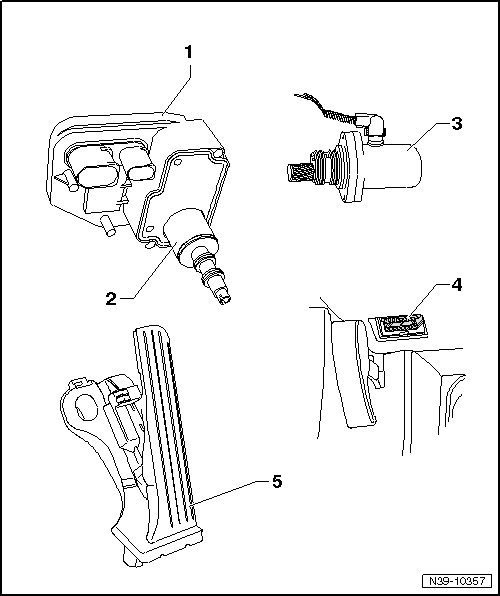

1 All-Wheel Drive Control Module (J492)

• Important signals from engine control module and ABS control module (J104) are transmitted via data BUS to all wheel drive control module.

2 Haldex Clutch Control Valve (N373)

3 Haldex Clutch Pump (V181)

• Can be tested in guided fault finding with the vehicle diagnosis, testing and information system (VAS 5051B).

4 Data Link Connector (DLC)

• Installed location: inside the left front footwell

5 Throttle Position (TP) Sensor (G79)
