Rain/Light Recognition Sensor

Rain/Light Recognition Sensor

Removing





- Remove the interior rearview mirror, refer to => [ Automatic Dimming Interior Rearview Mirror ] Automatic Dimming Interior Rearview Mirror.

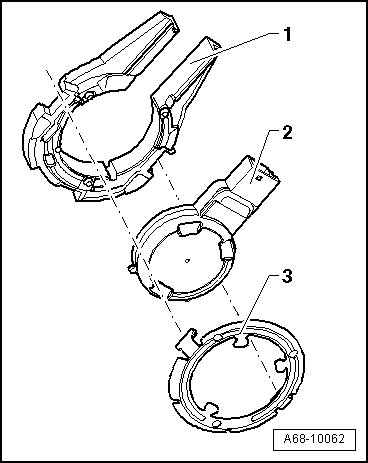

- Unclip retaining spring - 3 - from retaining plate - 1 -.

- Remove Rain/Light Recognition Sensor (G397) - 2 - from retaining plate - 1 -.

Installation





Installation is reverse of removal, but note the following:

- Ensure that retaining spring - 3 - engages correctly in retaining plate - 1 -.
