Keyless Entry - Emergency Key Won't Fit Into Transmitter
57 Metal emergency key does not fit in remote transmitter57 10 33
2024320/1
September 7, 2010

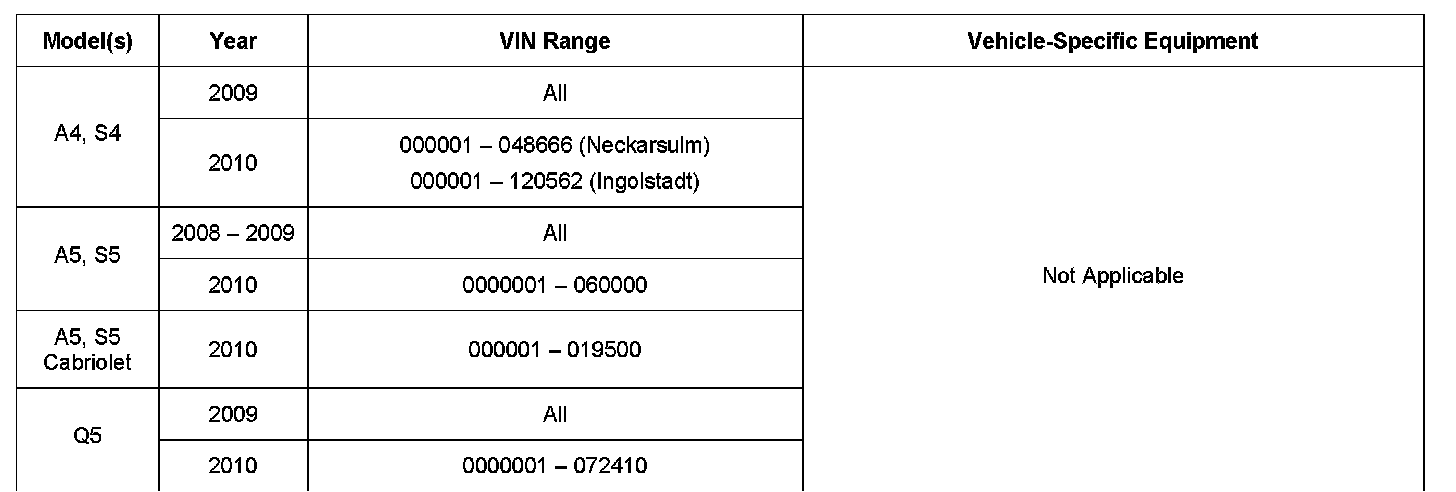

AFFECTED VEHICLE
CONDITION
The metal emergency key does not properly fit into the remote transmitter.
TECHNICAL BACKGROUND
The emergency key is the incorrect size.
PRODUCTION SOLUTION
Optimized emergency key.
SERVICE
Check whether the emergency key fits in another remote transmitter.
Possibility 1:
The emergency key does not fit in another remote transmitter.
In this case replace only the emergency key.
Possibility 2:
The emergency key does fit in another remote transmitter.
In this case replace the emergency key and the remote transmitter.
WARRANTY
REQUIRED PARTS AND TOOLS
ADDITIONAL INFORMATION
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
