Lane Change Assistance Control Module, Calibrating
Lane Change Assistance Control Module, Calibrating
Special tools, testers and auxiliary items required
• Calibration Tool (VAS 6350)
Conditions
- The lane change assistance control module must be calibrated in the "Guided Fault Finding" or "Guided Functions" operating mode under the following conditions:
• The lane change assistance control module (J769) or lane change assistance control module 2 (J770) was replaced.
• The rear bumper was damaged.
• The rear bumper was removed and installed.
• The DTC "no or incorrect basic setting/adaptation" is stored in the DTC memory.
Procedure
- Place the vehicle on a solid, level surface.
- Activate the parking brake - vehicle must not move during measurement.
- Place the front wheels in the straight ahead position - steering wheel in 0 position.
- Connect the vehicle diagnostic tester.
• If a malfunction message appears in the display, refer to the vehicle diagnostic tester operating instructions.
- Turn on the ignition.
- Remove the sticker with metal foil from the bumper cover if necessary.
- Secure three wheel bolt adapters on each (VAS 6350/1).
- Insert the measuring paddle on both (VAS 6350/1) and secure with lock nuts.
- Place the (VAS 6350/1) on the wheel bolts on both rear wheels.
• Wheel center sensor rotation center must be in wheel rotation center.
• Place the (VAS 6350/1) on wheels so that "anti-theft wheel bolts" are not connected with wheel center sensor.
- Adjust the measuring paddle with aid of lock nuts so that they move freely just above the floor.
• The measuring paddles must move easily.
• The measuring paddles must be vertical.
- Position the (VAS 6350) at distance - a - from the rear wheels.
• Dimension - a - = 1,700 mm
- Turn the (VAS 6350/2) on with the ON button.
Display on the (VAS 6350/2) :
• "- - - m"
• Laser is turned on at same time.
- For distance measurement, hold the (VAS 6350/2) - item 2 - flush to the right stop bracket as illustrated.
• The (VAS 6350/2) lays firmly against the catch bracket.
- Make sure the "laser beam" for the distance measurement contacts the paddle on lower enlarged part - 1 -.
If this is not the case, measure paddle height must be corrected using lock nuts on the (VAS 6350/1).
- Briefly press the ON button for distance measurement.
Display on the (VAS 6350/2) :
• "1,700 m" (specified value: 1,700 ± 2 mm).
- Repeat measurement procedure from left catch bracket to left rear wheel.
• The distance value must be the same on both sides.
If both measured values are not the same, adjust the (VAS 6350) accordingly.
- Select the path "calibration" after selecting "lane change assistance".
• The following information clarifies which version of the lane change assist is installed (version SWA1.7).
• This information for adjusting the calibration device is important for later steps in the procedure to avoid malfunctions.
- Secure the (VAS 6350/4) at the rear right of the (VAS 6350) mount.
• When installed correctly, vehicle electrical system voltage line must be connected at bottom left of calibration device (as seen in direction of travel).

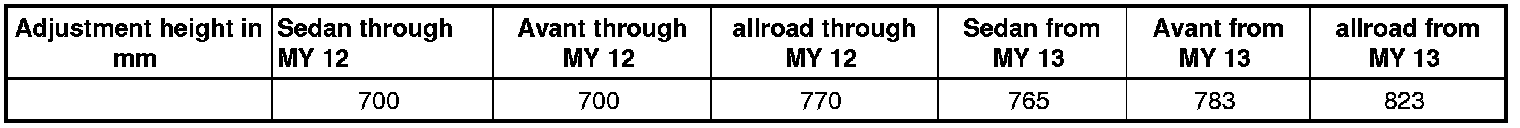

Dimension - a - is measured from upper edge of calibration device to the floor.
- The indicator on the base of the (VAS 6350/4) must align with the setting on the measurement scale - 1 - on measuring field - arrow -.
- Connect (VAS 6350/4) to vehicle electrical system voltage.
- Bring the (VAS 6350) into horizontal position by turning plastic base.
• Observe bubble level (sight glass) on the (VAS 6350) - arrow -.
- Turn the (VAS 6350/3) on the (VAS 6350) on.
- Put on the "Laser eye protection".
- Align the (VAS 6350) so the (VAS 6350/3) strikes the center of the brand emblem on the rear lid.
- Check the left and right distance between catch bracket on the (VAS 6350) and measuring paddle - 1 - on the wheel sensors again.
• Specified value: 1700 ± 2 mm
Calibration Procedure
The following should not occur during the calibration procedure:
• No metal reflectors may be located within a 2 m (6.5 ft.) radius of the calibration device (such as tool carts, metal cabinets).
• Vehicle doors must not be opened or closed.
• People should not sit in the vehicle.
• People should not go between the vehicle and the (VAS 6350/4).
Procedure
- Switch the (VAS 6350/4) on at the power switch - 3 -.
• The green Light Emitting Diode (LED) - 1 - must light up.
• If the red LED - 2 - lights up: Check the (VAS 6350/4).
- Follow the instructions on the vehicle diagnostic tester display.
During the course of the program, a request is made to switch the (VAS 6350/4) from the right to the left side of the (VAS 6350).
- Turn the (VAS 6350/4) off and move device.
• When installed correctly, vehicle electrical system voltage line must be connected at bottom left of calibration device (as seen in direction of travel).
Dimension - a - is measured from upper edge of calibration device to the floor.
- The indicator on the base of the (VAS 6350/4) must align with setting on measurement scale - 1 - on measuring field - arrow -.
- Turn the (VAS 6350/4) on at the power switch - 3 -.
• The green LED - 1 - must light up.
- Follow the instructions on the vehicle diagnostic tester display.
- After calibrating the lane change assistance successfully, end "calibration", turn off the ignition and disconnect the diagnostic connector.
