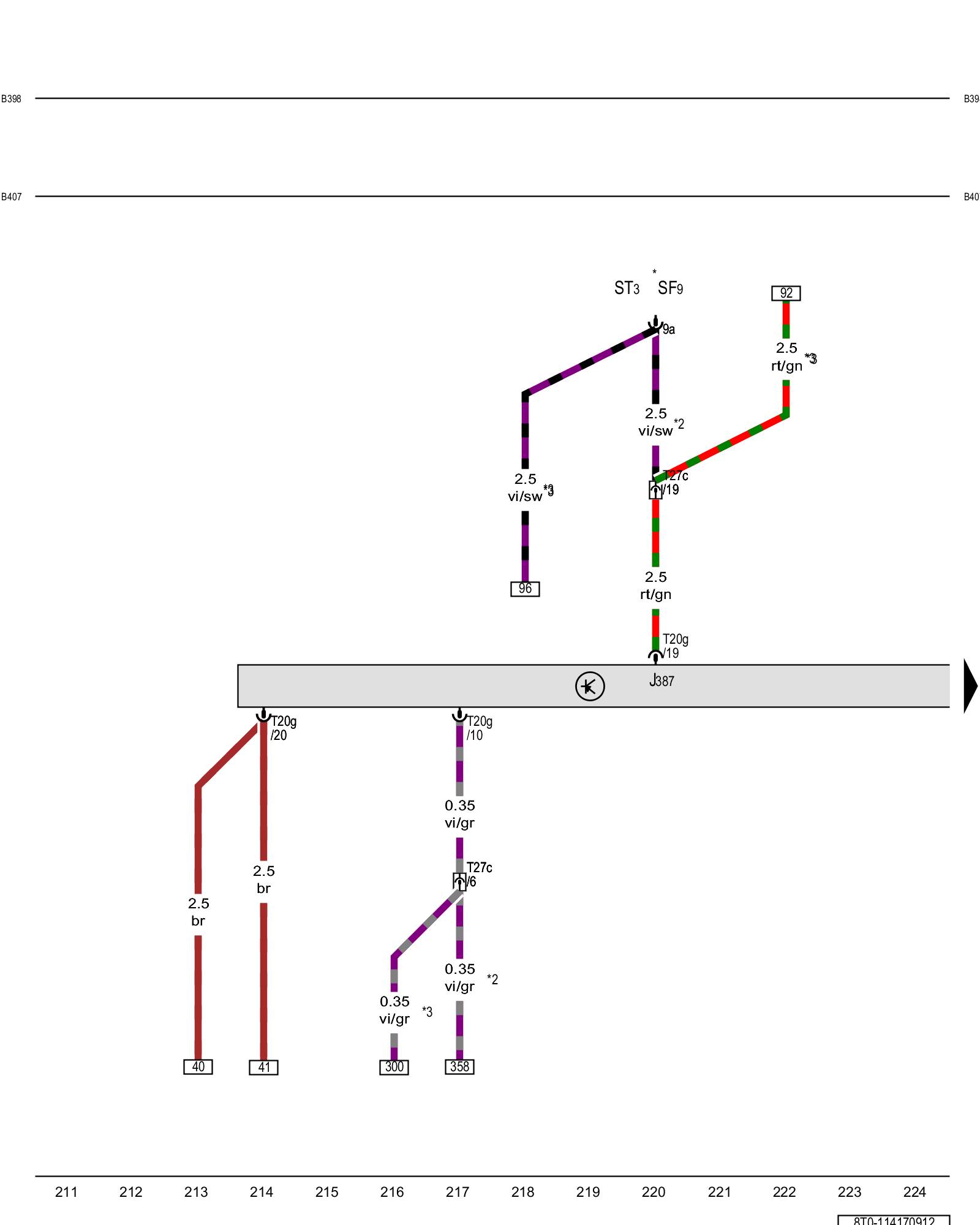

Diagram 114/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front passenger door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J387 - Front passenger door control module Overview of Control modules in interior of vehicle Coupe (2-door models)

ST3 - Fuse panel 3

SF9 - Fuse 9 (on fuse panel F) Overview Of Fuses

T20g - 20-pin connector

T27c - 27-pin connector, Right A-pillar, bottom

(B398) - Comfort system CAN bus high connection 2 (in main wiring harness)

(B407) - Comfort system CAN bus low connection 2 (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions

*2 - Only for left-hand drive vehicles

*3 - Only for right-hand drive vehicles
