Body - Trunk Lid Hinge Cover Is Loose
70 Rear lid hinge cover on left side is loose or broken70 09 01
2020809/1
June 15, 2009
Affected Vehicles
Condition
The left side rear lid hinge cover is loose.
Technical Background
Due to too little clearance between the left rear lid hinge cover and the left luggage compartment side trim, the rear lid hinge cover interferes with the luggage compartment side trim (Figure 1). As a result, the rear lid hinge cover is forced loose.
This can also happen if a heavy object is against the luggage compartment side trim.
Production Solution

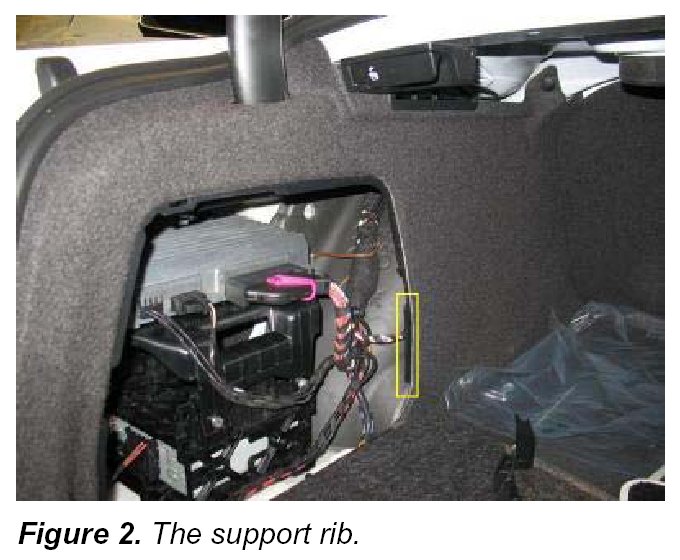

A support rib was installed in the frame of the left luggage compartment side trim to increase the clearance.
Service
The specified distance between the rear lid hinge cover and luggage compartment side trim is 3 mm. See Figure 5.
1. If the distance between the rear lid hinge cover and luggage compartment side trim is less than 3mm, replace the luggage compartment side trim.
2. Replace the rear lid hinge cover if it is damaged. Only improved parts are available.
Warranty
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.
Required Parts and Tools
A4

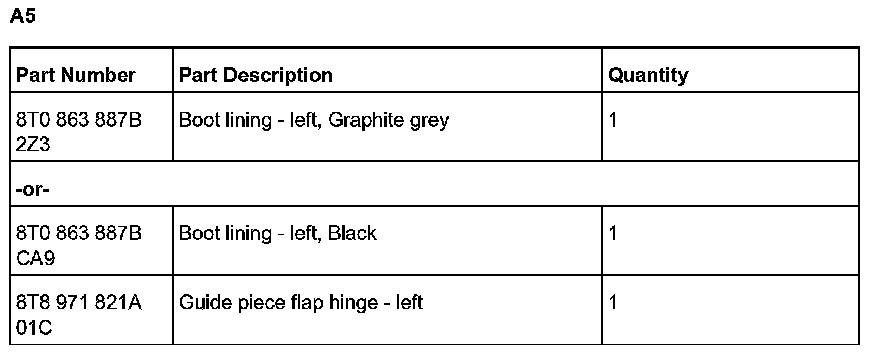

A5
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
