Campaign 23D6 - Suspension Control Unit Software Update
RVU 23D6 Service measures, Audi A4/A5/Q523 11 19
2020592/5
June 27, 2011
Supersedes Technical Service Bulletin Group 23 number 10 - 12 dated June 9, 2010 for reasons listed below.
Affected Vehicles
Condition
This RVU has been proactively released to prevent the following condition from occurring in the vehicle:
For Audi A4/A5/Q5 vehicles manufactured within a specific period with Audi Drive Select, a software update must be performed for the suspension control unit, and for the Audi Q5 a tool must be added to the tool kit.
This Required Vehicle Update (RVU) is in effect until March 30, 2011.
After that date, this RVU will expire and no longer be in effect.
Vehicle must meet all of the following criteria:
^ Procedure is valid only for vehicles that show the 23D6 code in the ElsaWeb Campaign/Action Information screen on the day of repair.
^ Vehicle must be within the Limited New Vehicle Warranty.
^ Procedure must be performed within the allotted time frame stated in this Technical Service Bulletin.
^ Procedure must be performed on applicable vehicles in dealer inventory prior to sale.
Technical Background
The required modifications are:
^ For select A4, A5, and Q5 VINs: Suspension control (address word 14) software update: Optimization of initialization.
^ For select Q5 VINs: Torx tool must be added to tool kit for manual operation of the sunroof and for bulb replacement in halogen headlight equipped vehicles.
Production Solution
Service
Input the vehicle's VIN into ElsaWeb to determine which Criteria IDs apply.
Tip: Not all vehicles will require all repairs. Claims for repairs not required for the VIN will be denied.
Software Update with SVM Code 23D6A001 (criterion 14)

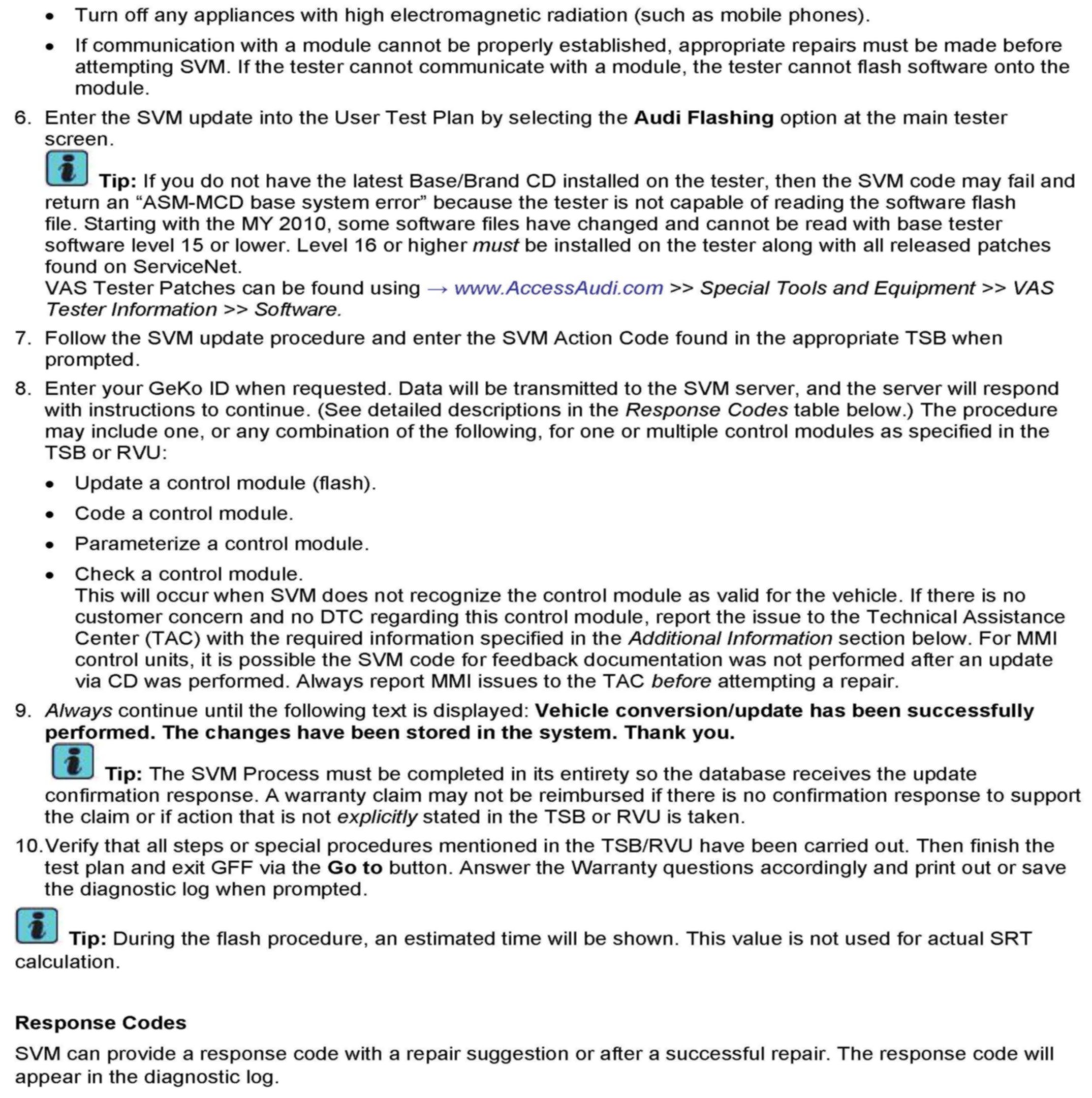

1. Follow all instructions in the attached TSB 2011732 00 Software Version Management (SVM), operating instructions.
2. Update the Suspension Control Unit using the SVM action code as listed in the table above if necessary.

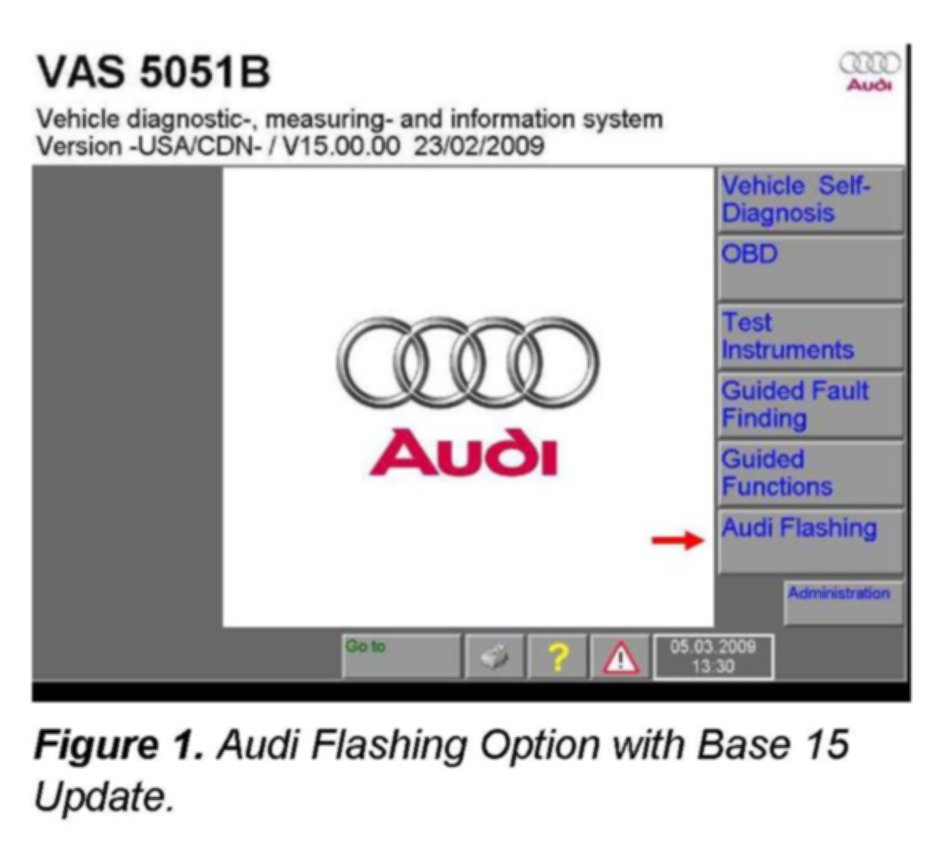

Tip: The Base 15 CD update adds the "Audi Flashing" option at the main tester screen. Using this function can reduce the time necessary to perform the software update by allowing a quick access to the Software Version Management (SVM) selections.
Adding Torx to Tool Kit (criterion 8R)
Put the Torx tool in the tool kit. The tool kit is under the floor panel in the luggage compartment.
Warranty
Tip: Claim only Criteria IDs that ElsaWeb shows are applicable to the VIN. Claims for repairs not required for the VIN will be denied.
Required Parts and Tools
^ Destroy and properly dispose of removed parts in accordance with local, state and federal/provincial environmental regulations.
^ If you have exhausted your allocated parts and you require additional parts for vehicles affected by this RVU but have exceeded your Upper Order Limit, please submit your requests for additional parts via email.
^ Be sure to include the affected VINs with your order. Prior to submitting your request, ensure that each vehicle has the 23D6 code open in ElsaWeb. Your order will be reviewed and processed accordingly.
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
Attachment
TSB 2011732 00 Software Version Management (SVM), operating instructions
