Rear Final Drive 0BF and 0BE

Special Tools

Special tools, testers and auxiliary items required

• Sleeve (40 - 21)






• Seal Press Sleeve (2003/1) from the Seal Installer (2003)






• Alignment Fixture-4W Dr.Shaft (3139)






• Press Tool (3345)






• Tensioning Strap (T10038)






• Puller (T10055)






• - 2 - Adapter (T10055/2)

• Guide sleeve (T40222/1)

• Hex Ball Socket (T10058)

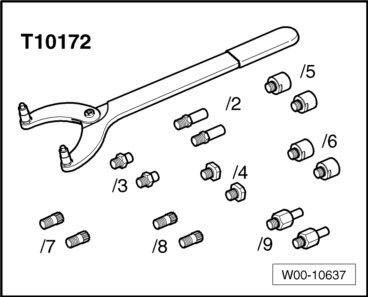

• Counterhold Tool Touareg V10 (T10172) with Adapters (T10172/5)






• Adapter (T10172/5) (M8 bolts)

• Adapter (T10172/6) (M10 bolts)

• Socket XZN 4 (T10370)






• Thrust Piece (T10380)






• Socket 27 mm (T40218)






• Assembly Tool (T40222)






• Hose Clamp Pliers (V.A.G 1275)






• Engine-Gearbox Jack (V.A.G 1383 A) with Universal Mount (V.A.G 1359/2)






• Charging Device F/Haldex 2 Coup. (VAS 6291) or Charging Device for Haldex Coupling 2 (VAS 6291A)






• Adapter for Oil Filling VAS 6291/2 (VAS 6291/2) or Adapter for Oil Filling VAS 6291/3 (VAS 6291/3)

• Vehicle Diagnosis, Testing and Information System (VAS 5051B)






• - 3 - Separating Device 22 to 115 mm , for example (Kukko 17/2)






• - 1 - Two Arm Puller (Kukko 20/10)






• Inductive heat unit (VAS 6414)






• Needle Bearing Drift (VW 295 A)






• Puller (VW 391)






• Thrust Plate (VW 401)






• Thrust Plate (VW 402)






• Punch (VW 408 A)






• Thrust Disc (VW 412)






• Thrust Pad 16.5/28 mm Dia. (VW 431)






• Support Channels (VW 457)






• Slide Hammer - Complete Set (VW 771)






• Transmission Support (VW 785/1 B)






• Not illustrated:

• Assembly Tool (3301)

• Support Arm Bearing Inst.Tool (3346)

• Nut (3346/3)

• Digital thermometer (VAS 6519)

• Thrust Piece (T40221)











Edition 1 20 2012
