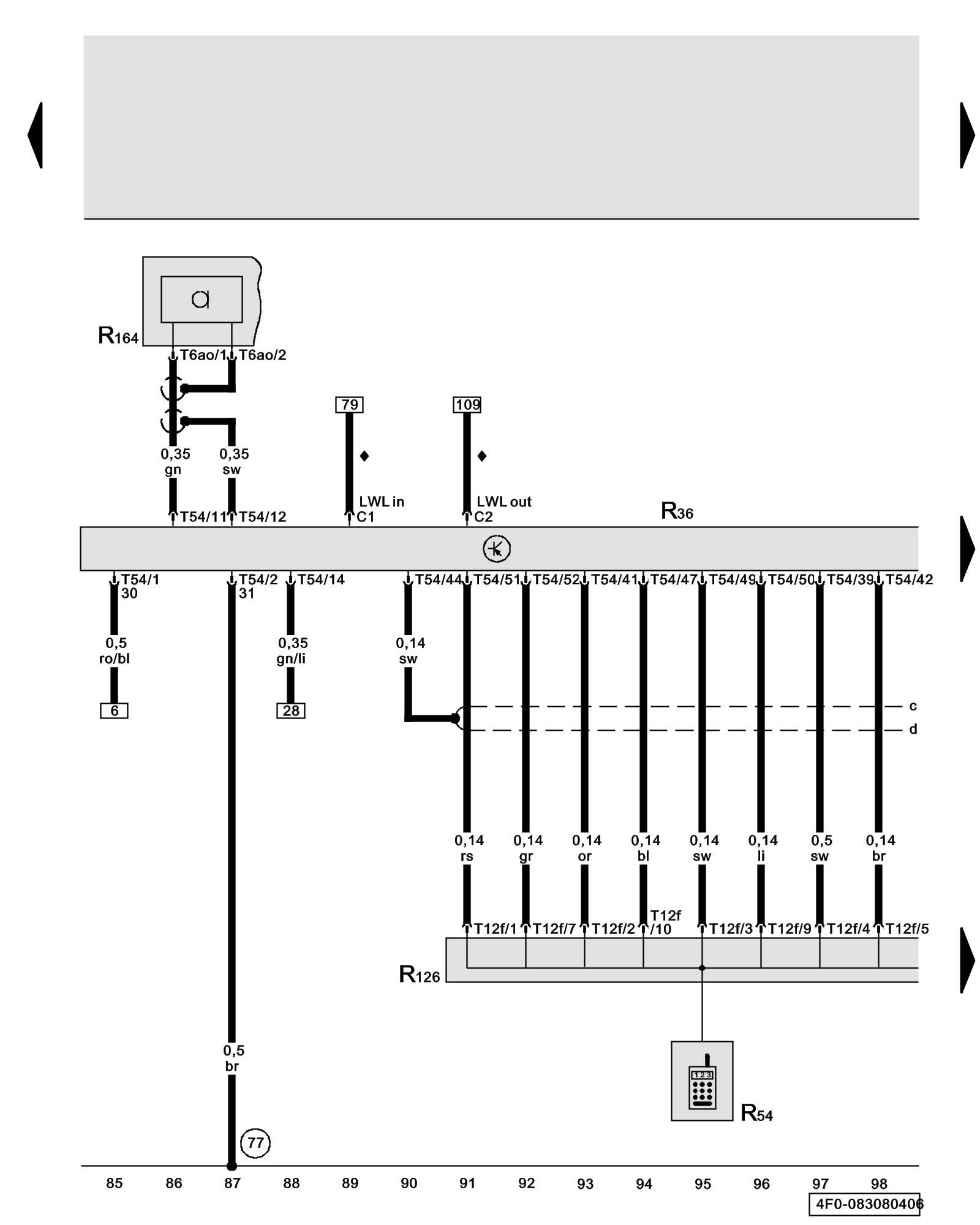

Diagram 83/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Transceiver, Telephone Base plate, Microphone Unit (in front roof module)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R36 - Telephone Transceiver

R54 - Cellular Telephone Phone System Component Locations

R126 - Telephone Base plate Phone System Component Locations

R164 - Microphone Unit (in front roof module) Phone System Component Locations

T6ao - 6-Pin Connector, blue, roof module microphone connector

T12f - 12-Pin Connector, on cellular telephone

T54 - 54-Pin Connector, black, on telephone transceiver

(77) - Ground Connection (on left lower B-pillar) Overview of Ground Connections in Interior of Vehicle

♦ - FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)
