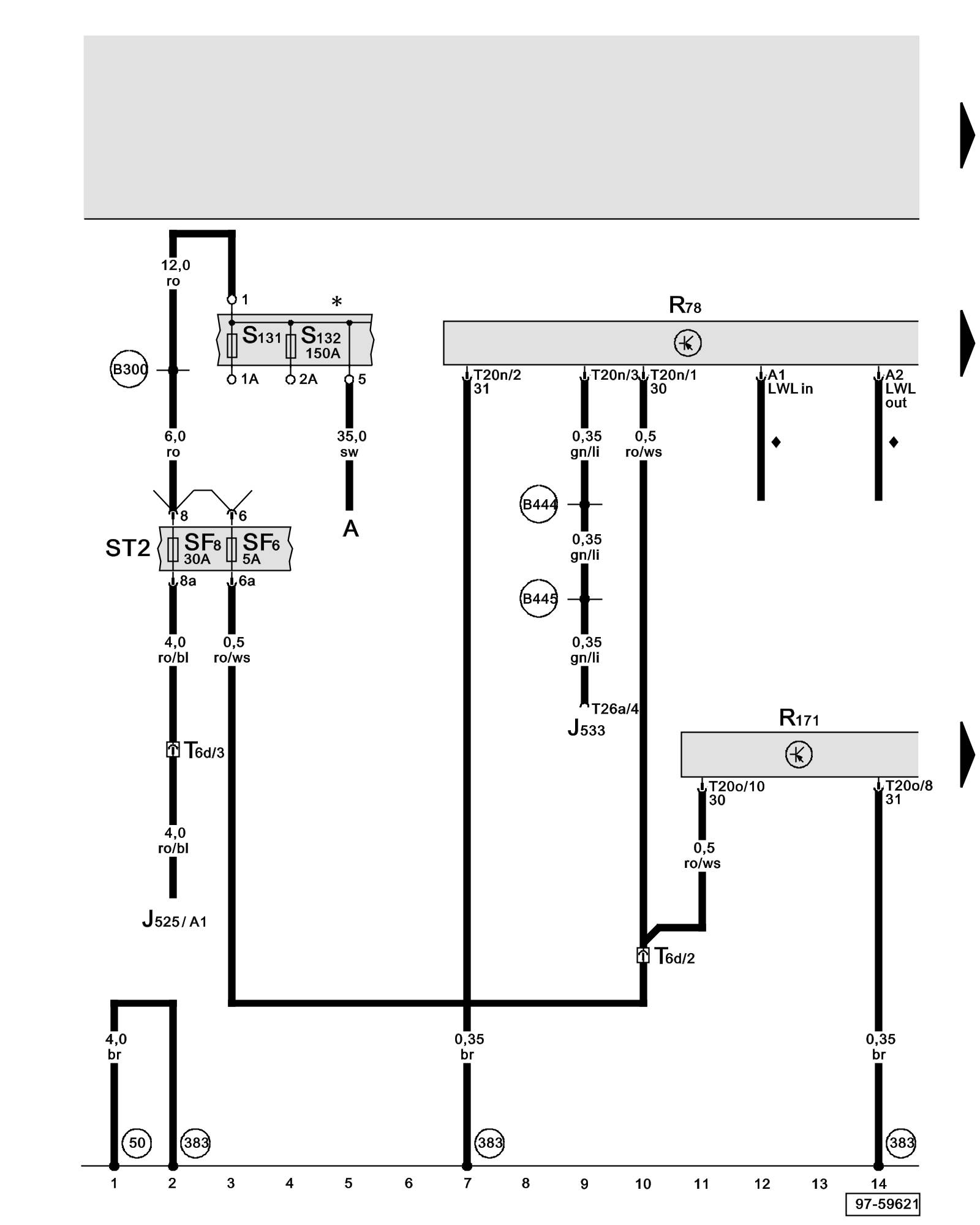

Diagram 47/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


TV Tuner, Digital TV Tuner, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

J525 - Digital Sound System Control Module Overview of Control Modules

J533 - Data Bus On Board Diagnostic Interface Overview of Control Modules

R78 - TV Tuner Overview of Control Modules

R171 - Digital TV Tuner

S131 - Safety Fuse 1 Overview of Fuses

S132 - Safety Fuse 2 Overview of Fuses

SF6 - Fuse 6 (on fuse panel) Overview of Fuses

SF8 - Fuse 8 (on fuse panel) Overview of Fuses

T6d - 6-Pin Connector, black, in luggage compartment, left

T20n - 20-Pin Connector, red (Connector B), on TV Tuner

T20o - 20-Pin Connector, black (Connector E), on digital TV Tuner

T26a - 26-Pin Connector, black, on data bus on board diagnostic interface

(50) - Ground Connection (in luggage compartment, left) Overview of Ground Connections in Interior of Vehicle

(383) - Ground Connection 18 (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

(B444) - On Board Diagnostic (OBD) Connection 1 (in main wiring harness) (Ring break Diagnosis)

(B445) - On Board Diagnostic (OBD) Connection 2 (in main wiring harness) (Ring break Diagnosis)

* - Relay and fuse carrier in right luggage compartment

♦ - FOC - Fibre Optic Conductor, see Wiring Diagram Infotainment-Data Bus (Most-Ring)

Next Diagram 47/3 (Tracks 15-28)
