Garage Door Opener Control Head: Service and Repair

Garage Door Opener Control Head

Removing

- Switch off ignition and remove ignition key.

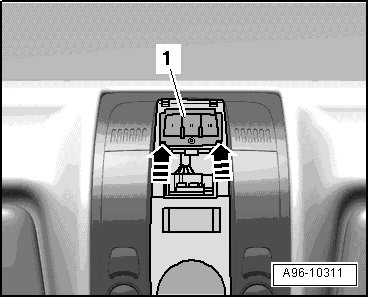

- Release retaining springs - arrows - using a small screwdriver and pivot garage door opener control head (E284) out of interior/reading light.





- Disconnect connector.

Installing

Install in reverse order of removal, observing the following:

- Connect electrical connector.

- Press on center cover for interior/reading light until it engages.
