Diagram 127/32 (Tracks 421-434)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


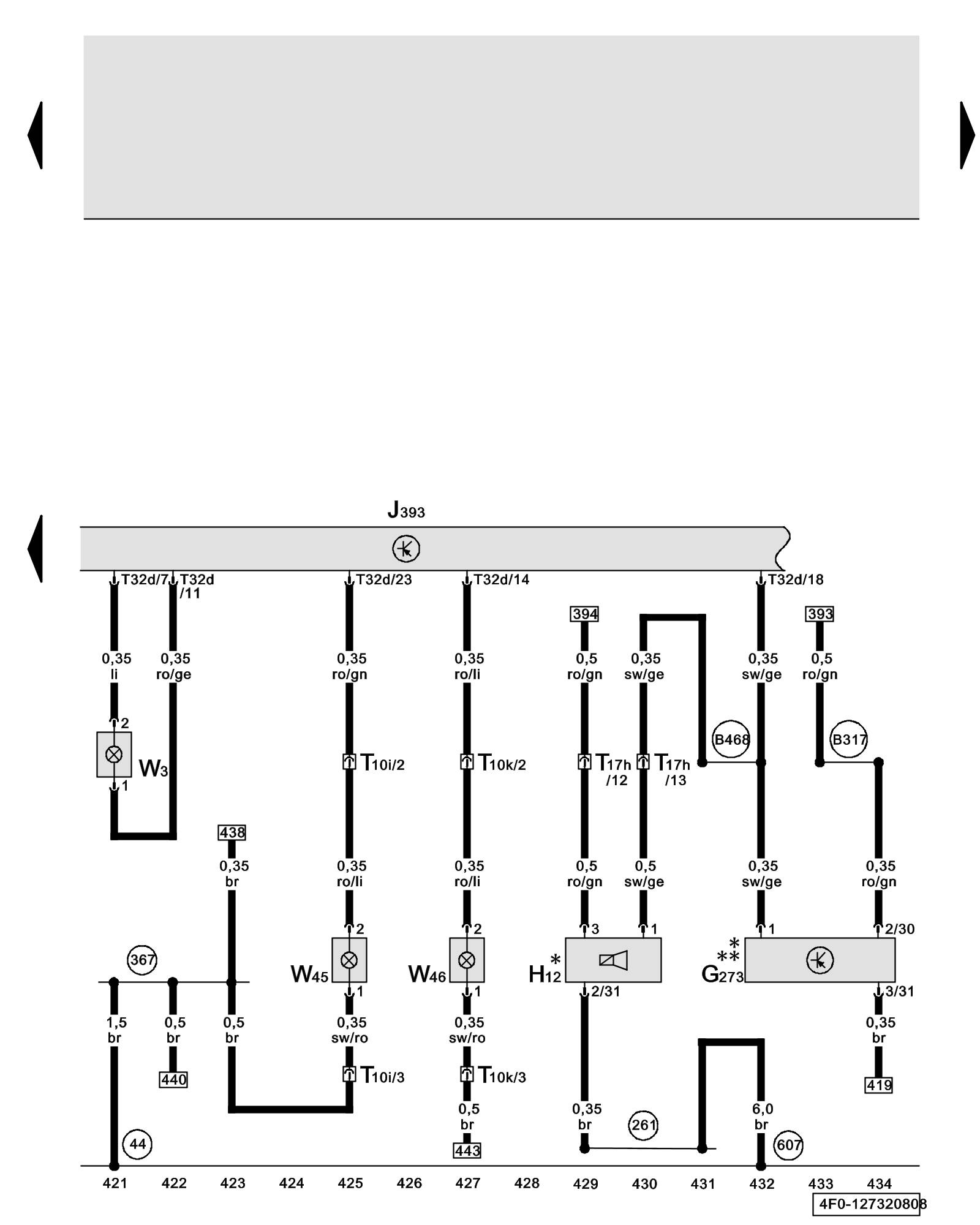

Comfort System Central Control Module, Luggage Compartment Light, Left and Right Rear Footwell Light, Alarm Horn, Rear Window Shade Motor, Interior Monitoring Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G273 - Interior Monitoring Sensor Locations

H12 - Alarm Horn Locations

J393 - Comfort System Central Control Module Overview of Control Modules

T10i - 10-Pin Connector, red, left of seat cross member Overview of Connector Stations and Connectors

T10k - 10-Pin Connector, red, right of seat cross member Overview of Connector Stations and Connectors

T15 - 15-Pin Connector, brown (Connector A), on comfort system central control module

T17h - 17-Pin Connector, orange, connector station electronics box in left plenum chamber Overview of Connector Stations and Connectors

T32d - 32-Pin Connector, blue (Connector B), on comfort system central control module

V91 - Rear Window Shade Motor

W3 - Luggage Compartment Light

W45 - Left Rear Footwell Light

W46 - Right Rear Footwell Light

(44) - Ground Connection (on left lower A-pillar) Overview of Ground Connections in Interior of Vehicle

(261) - Ground Connection (in heated spray jet wiring harness)

(367) - Ground Connection 2 (in main wiring harness)

(607) - Ground Connection (in plenum chamber, left) Overview of Ground Connections in Front Part of Vehicle

(B317) - Plus Connection 3 (30a) (in main wiring harness)

(B468) - Connection 4 (in main wiring harness)

* - Models with anti-theft alarm system

** - Models with anti-theft alarm system and interior monitoring

# - Models with rear window shade

Previous Diagram 127/31 (Tracks 407-420)

Next Diagram 127/33 (Tracks 435-448)
