Body, Front

Body, Front

=> [ Fender Assembly Overview ]

=> [ Noise Insulation Assembly Overview ]

=> [ Rear Noise Insulation Assembly Overview ]

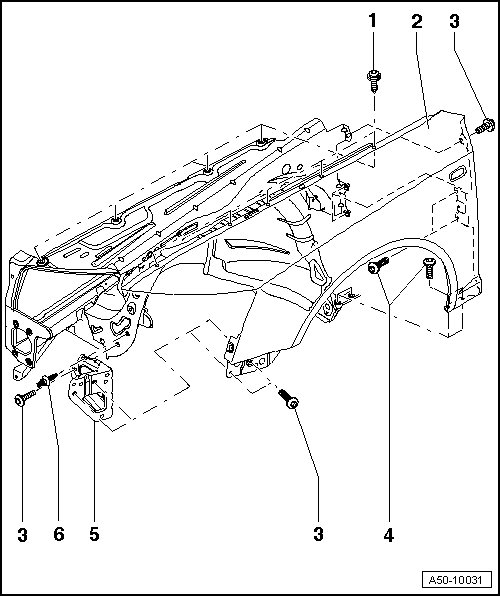

Fender Assembly Overview

• Bolts are micro-encapsulated and must be replaced after loosening or after removing the fender.

• Before installing new screws, clean threads with an appropriate thread cutter.





1 - Combination screw

• 15 Nm

2 - Fenders

• Before removing, remove screws on washer fluid reservoir.

• Remove bumper. Refer to => [ Front Bumper ] Service and Repair.

• Remove wheel housing liner. Refer to => [ Front Wheel Housing Liner ] Wheel Housing Liner.

• Remove end plate. Refer to Fig. => [ Removing ] Body, Front

• Remove headlight. Refer to => Electrical Equipment 94 Removal and Installation

• Disconnect side blinker electrical connections.

• Remove screws- 1 - on fender flange.

• Remove screws- 3 - and - 4 -and remove fender.

3 - Combination screw

• 15 Nm

4 - Combination screw

• 15 Nm

5 - Fender brace

6 - Screw

• 15 Nm

• Left side only.

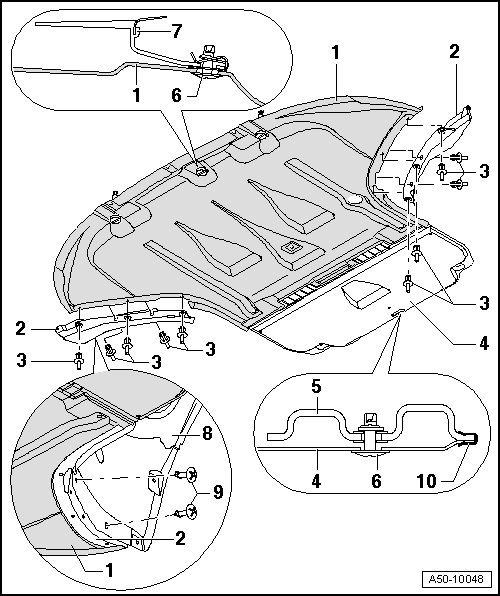

Noise Insulation Assembly Overview





1 Front noise insulation

• Remove two end pins on each wheel housing liner

• To remove, remove front and rear quick release screws.

• Pull the noise insulation slightly toward the rear and then under the bumper cover.

• Remove the noise insulation forward with the wheel spoilers.

2 Wheel spoiler

• To remove, disengage expanding clip by pressing clamping pins.

3 Clamping pin

• 5 pieces per wheel spoiler

4 Rear noise insulation

• Removal, refer to => [ Rear Noise Insulation Assembly Overview ]

5 Subframe

6 Quick release screw

• For lock carrier service position, remove quick release screws only on lock carrier.

• Quantity: 3

7 Lock carrier with attachments

8 Wheel housing liner

9 End pins

• When removing, remove front noise insulation.

• 2 times left and right on each wheel housing liner.

10 Retaining clip

Rear Noise Insulation Assembly Overview





1 Front noise insulation

2 Rear noise insulation

• To remove, open the rear quick-release fasteners on the front noise insulation.

• Open the rear quick-release fasteners on the rear noise insulation and pull it out

3 Spring nut

• Inserted sideways in subframe.

4 Subframe
