Hinge Cover Reinforcement

Hinge Cover Reinforcement

Removing





- Remove the window frame and door window. Refer to => [ Window Frame and Door Window ].

- Remove the speaker.

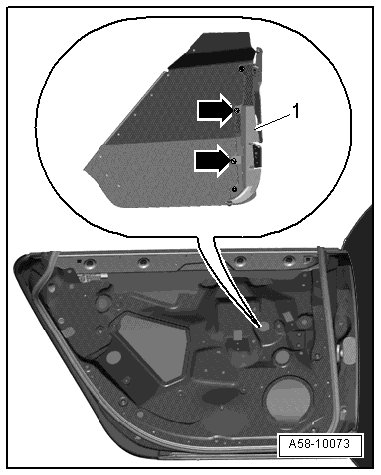

- Remove bolts - arrows -.

- Remove the hinge cover reinforcement - 1 - through the speaker opening.

Installation

To install, perform the steps used in removal in reverse order.

• Tightening specifications, refer to => [ Rear Door Reinforcement Assembly Overview ] Rear Door.
