Rear Wheel Housing Liner

Rear Wheel Housing Liner

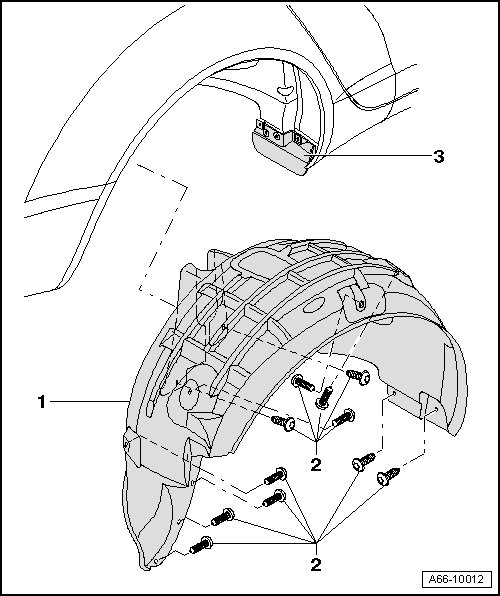

Right Wheel Housing Liner





1 - Rear wheel housing liner

• Remove rear wheel before disassembly.

• Remove the bolts - 2 -.

• Pull wheel housing liner sideways out of wheel housing and remove downward.

2 - Bolt

• 1.5 Nm

3 - Wheel spoiler

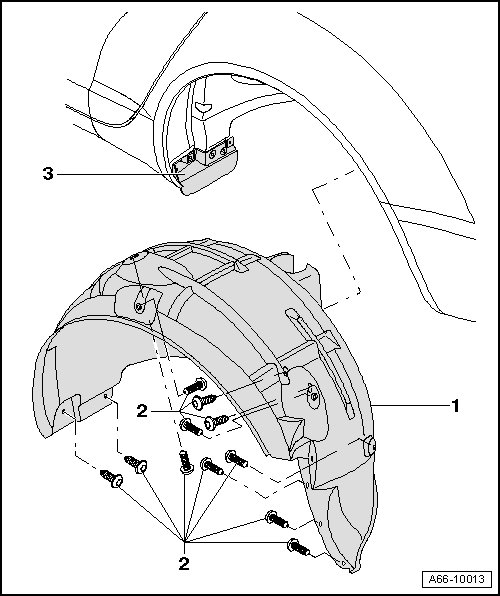

Left Wheel Housing Liner





1 Rear wheel housing liner

• Remove rear wheel before disassembly.

• Remove the bolts - 2 -.

• Pull wheel housing liner sideways out of wheel housing and remove downward.

2 Bolt

• 1.5 Nm

3 Wheel spoiler
