Luggage Compartment Cargo Floor Handle

Luggage Compartment Cargo Floor Handle

Removing

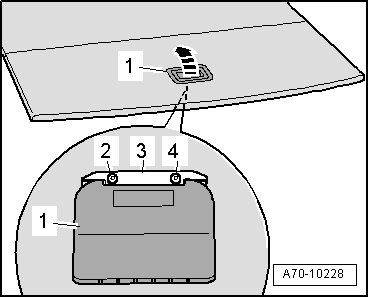

- Remove luggage compartment floor - 1 -.

• Ignore - 2 -.

- Remove screws - 2 - and - 4 - and remove countersupports.





- Swivel luggage compartment floor - 1 - handle - 3 - out in - direction of arrow -.

Installing

To install, perform the steps used in removal in reverse order.

Tightening Specifications
