Rear Cross Panel Trim

Rear Cross Panel Trim

Removing

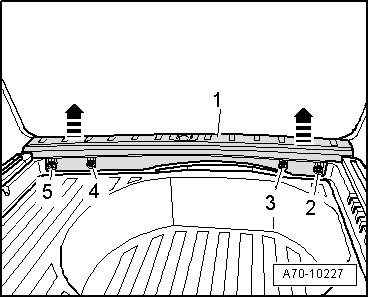

- Remove bolts - 2 to 5 -.

- Remove rear cross panel trim - 1 - upward - arrows -.

Installing

Installation is reverse of removal, but note the following:

- Install rubber seal lip over leading edge on rear cross panel trim.

Tightening Specifications
